TPA2026D2YZHR - Texas Instruments

Description: 3.2-W/Ch Stereo SmartGainTM Class-D Audio Amplifier with Dynamic Range

Download TPA2026D2YZHR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

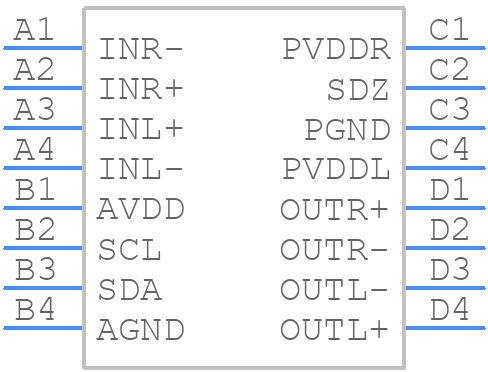

TPA2026D2YZHR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPA2026D2YZHR - Texas Instruments PCB footprint - BGA - BGA - YZH(S-XBGA-N16)
click to zoom
3D Models
TPA2026D2YZHR - Texas Instruments - 3D model - BGA - YZH(S-XBGA-N16)
click to zoom

TPA2026D2YZHR Details

  • Manufacturer Part Number:

    TPA2026D2YZHR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    BGA

  • Pin Count:

    16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Bandwidth-Nom:

    20 kHz

  • Consumer IC Type:

    CLASS D AUDIO AMPLIFIER

  • JESD-30 Code:

    R-PBGA-B16

  • JESD-609 Code:

    e1

  • Length:

    2.134 mm

  • Moisture Sensitivity Level:

    1

  • Noise Figure-Nom:

    95 dB

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    3.2 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA16,4X4,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.625 mm

  • Supply Current-Max:

    5.5 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.112 mm

TPA2026D2YZHR Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPA2026D2YZHR involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing decoupling capacitors close to the device. TI provides a recommended layout in the datasheet and application notes.
  • The gain setting depends on the input signal level and the desired output power. The TPA2026D2YZHR has a gain range of 20 dB to 40 dB. A higher gain setting can provide more output power, but may also increase noise and distortion. A lower gain setting can provide a cleaner signal, but may not provide enough output power.
  • The maximum power dissipation of the TPA2026D2YZHR is 2.5 W. This is dependent on the ambient temperature, PCB layout, and thermal management. Exceeding this limit can cause the device to overheat and potentially fail.
  • The TPA2026D2YZHR has built-in ESD protection, but additional protection measures can be taken. Use TVS diodes or ESD protection devices on the input and output lines, and consider adding overvoltage protection circuits to prevent damage from voltage spikes.
  • TI recommends using a 10 μF ceramic capacitor and a 1 μF ceramic capacitor in parallel, placed close to the device's power pins. This helps to filter out noise and ripple on the power supply lines.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPA2026D2YZHR Overview

Use the download button to access the TPA2026D2YZHR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPA20, or try a keyword search, such as Audio/Video Amplifiers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
