Texas Instruments provides a recommended PCB layout in the TPA2026D2YZHT datasheet, which includes guidelines for component placement, trace routing, and thermal management. Following this layout can help minimize noise, distortion, and thermal issues.
The input capacitor values depend on the input signal frequency, amplitude, and impedance. A general rule of thumb is to choose a capacitor with a value between 1uF to 10uF, with a voltage rating that exceeds the maximum input signal voltage. TI also provides a capacitor selection guide in the datasheet.
The maximum power dissipation of the TPA2026D2YZHT is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 2.5W at 25°C ambient temperature, with a thermal resistance of 34.4°C/W. However, it's recommended to derate the power dissipation based on the actual operating conditions.
Yes, the TPA2026D2YZHT can be used in a bridged configuration to increase the output power. However, this requires careful consideration of the output stage design, including the output filter components and the load impedance. TI provides a bridged amplifier configuration example in the datasheet.
TI provides a troubleshooting guide in the datasheet, which covers common issues and their possible causes. Additionally, engineers can use tools like oscilloscopes and signal generators to debug the circuit and identify the root cause of the issue.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPA2026D2YZHT Overview

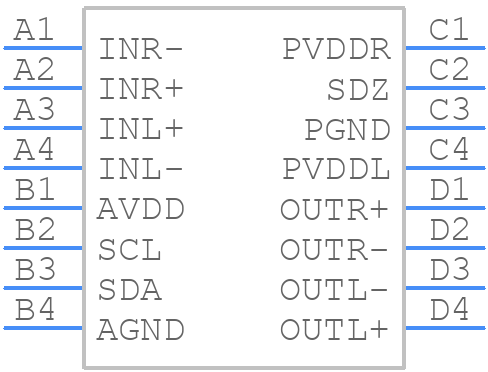

Use the download button to access the TPA2026D2YZHT schematic symbol, PCB footprint, and 3D model.
