TPA2032D1YZFR - Texas Instruments

Description: 2.75-W Mono Class-D Audio Amplifier with 2 V/V Fixed Gain (TPA2032)

Download TPA2032D1YZFR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

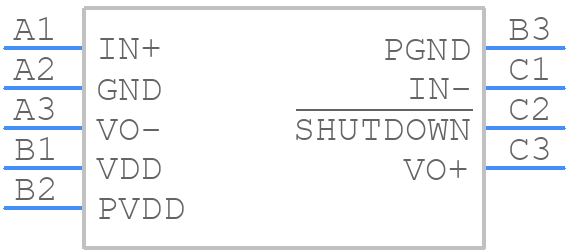

TPA2032D1YZFR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPA2032D1YZFR - Texas Instruments PCB footprint - BGA - BGA - YZF0009
click to zoom
3D Models
TPA2032D1YZFR - Texas Instruments - 3D model - BGA - YZF0009
click to zoom

TPA2032D1YZFR Details

  • Manufacturer Part Number:

    TPA2032D1YZFR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    BGA

  • Pin Count:

    9

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Bandwidth-Nom:

    20 kHz

  • Consumer IC Type:

    CLASS D AUDIO AMPLIFIER

  • Gain:

    6 dB

  • JESD-30 Code:

    S-PBGA-B9

  • JESD-609 Code:

    e1

  • Length:

    1.75 mm

  • Moisture Sensitivity Level:

    1

  • Noise Figure-Nom:

    100 dB

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    2.75 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA9,3X3,20

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.625 mm

  • Supply Current-Max:

    5.7 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.75 mm

TPA2032D1YZFR Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPA2032D1YZFR involves keeping the input and output traces short and away from each other, using a ground plane, and placing decoupling capacitors close to the device. TI provides a recommended layout in the datasheet and application notes.
  • The gain setting depends on the input signal level and the desired output power. The TPA2032D1YZFR has a gain range of 6 dB to 26 dB. A higher gain setting can lead to higher output power, but may also increase noise and distortion. Start with a lower gain setting and adjust as needed.
  • The maximum power dissipation of the TPA2032D1YZFR is 2.5 W. This is dependent on the ambient temperature, PCB layout, and thermal management. Ensure proper heat sinking and thermal design to prevent overheating.
  • Yes, the TPA2032D1YZFR can be used in a bridged configuration to increase the output power. However, this requires careful design and layout considerations to ensure proper phase matching and thermal management.
  • Use a combination of passive and active filtering techniques, such as RC filters, ferrite beads, and shielding, to minimize noise and EMI in your audio circuit. Ensure proper grounding and decoupling to reduce noise coupling.
