Texas Instruments provides a recommended PCB layout in the datasheet, which includes guidelines for component placement, trace routing, and thermal management. It's essential to follow these guidelines to ensure optimal performance, thermal dissipation, and EMI reduction.
The gain setting depends on the input signal level, desired output power, and system requirements. The TPA2033D1YZFR has a gain range of 6 dB to 26 dB. Use the gain equation provided in the datasheet to calculate the required gain setting for your application.
The maximum power dissipation of the TPA2033D1YZFR is dependent on the ambient temperature and the thermal resistance of the PCB. According to the datasheet, the maximum power dissipation is 2.5 W at 25°C ambient temperature. However, this value can be derated based on the actual operating conditions.
The TPA2033D1YZFR has an internal undervoltage lockout (UVLO) circuit that disables the device when the supply voltage falls below 2.5 V. For overvoltage protection, it's recommended to use a voltage regulator or a transient voltage suppressor (TVS) diode to limit the supply voltage to the recommended maximum rating of 5.5 V.
The recommended input coupling capacitor value depends on the input signal frequency and impedance. A general guideline is to use a capacitor value between 1 μF to 10 μF, with a voltage rating that matches the input signal amplitude. A higher capacitor value can help filter out high-frequency noise, but may also affect the low-frequency response.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPA2033D1YZFR Overview

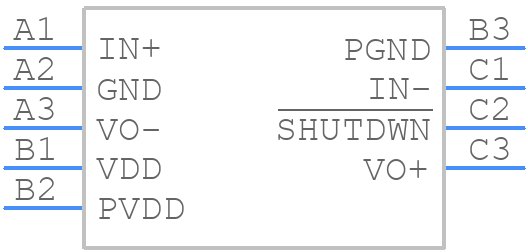

Use the download button to access the TPA2033D1YZFR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPA20,
or try a keyword search, such as Audio/Video Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
