Texas Instruments provides a recommended PCB layout in the datasheet, which includes guidelines for component placement, trace routing, and thermal management. It's essential to follow these guidelines to ensure optimal performance, thermal dissipation, and EMI reduction.
The input capacitor values depend on the input impedance, frequency response, and noise requirements of your application. A general rule of thumb is to use a 1-10uF capacitor with a voltage rating of at least 2x the maximum input voltage. TI also provides a capacitor selection guide in the datasheet.
The maximum power dissipation of the TPA2035D1YZFR is dependent on the ambient temperature, PCB layout, and thermal management. According to the datasheet, the maximum power dissipation is 2.5W at 25°C ambient temperature. However, it's essential to perform thermal calculations and simulations to ensure the device operates within safe operating conditions.
Yes, the TPA2035D1YZFR can be used in a bridged configuration to increase the output power. However, this requires careful consideration of the output stage, power supply, and thermal management. TI provides guidelines for bridged configurations in the datasheet and application notes.
To reduce EMI and noise, follow proper PCB layout guidelines, use shielding, and implement filtering techniques such as ferrite beads, capacitors, and resistors. Additionally, ensure proper grounding, decoupling, and bypassing of power supplies and signals.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPA2035D1YZFR Overview

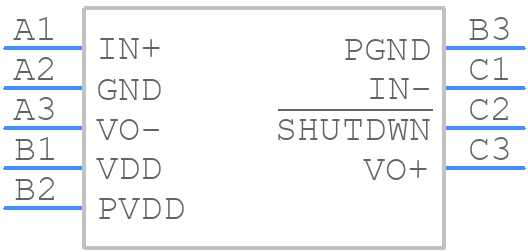

Use the download button to access the TPA2035D1YZFR schematic symbol, PCB footprint, and 3D model.
