TPA2036D1YZFR - Texas Instruments

Description: 2.5-W Mono Class-D Audio Amplifier with Variable Gain and Short Circuit Auto-Recovery (TPA2036)

Download TPA2036D1YZFR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

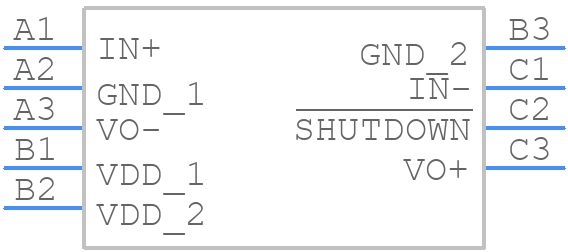

Symbol
TPA2036D1YZFR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPA2036D1YZFR - Texas Instruments PCB footprint - BGA - BGA - YZF0009_2021
click to zoom
3D Models
TPA2036D1YZFR - Texas Instruments - 3D model - BGA - YZF0009_2021
click to zoom

TPA2036D1YZFR Details

  • Manufacturer Part Number:

    TPA2036D1YZFR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    BGA

  • Pin Count:

    9

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Consumer IC Type:

    CLASS D AUDIO AMPLIFIER

  • JESD-30 Code:

    S-PBGA-B9

  • JESD-609 Code:

    e1

  • Length:

    1.795 mm

  • Moisture Sensitivity Level:

    1

  • Noise Figure-Nom:

    97 dB

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    2.5 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA9,3X3,20

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.625 mm

  • Supply Current-Max:

    4.9 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.795 mm

TPA2036D1YZFR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the TPA2036D1YZFR evaluation module documentation, which includes guidelines for component placement, trace routing, and thermal management to minimize noise and ensure optimal performance.
  • The gain setting depends on the input signal level and the desired output power. The TPA2036D1YZFR has a gain range of 10 dB to 30 dB. Use the gain equation in the datasheet to calculate the required gain setting based on your input signal level and desired output power.
  • The maximum power dissipation of the TPA2036D1YZFR is dependent on the ambient temperature and the thermal resistance of the PCB. Use the thermal resistance values provided in the datasheet to calculate the maximum power dissipation for your specific application.
  • Use voltage regulators and overvoltage protection (OVP) circuits to ensure that the supply voltage to the TPA2036D1YZFR remains within the recommended operating range. Additionally, use undervoltage lockout (UVLO) circuits to prevent the device from operating during undervoltage conditions.
  • The recommended input capacitor value is 1 μF to 10 μF, and the type should be a high-quality, low-ESR ceramic capacitor. The input capacitor helps to filter out noise and ripple from the input signal and ensures stable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPA2036D1YZFR Overview

Use the download button to access the TPA2036D1YZFR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPA20, or try a keyword search, such as Audio/Video Amplifiers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
