Texas Instruments provides a recommended PCB layout in the TPA2039D1YFFT evaluation module documentation, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The gain setting depends on the input signal level and the desired output power. The TPA2039D1YFFT has a variable gain control pin (GVDD) that allows for gain adjustment from 20 dB to 30 dB. Consult the datasheet and application notes for guidance on selecting the correct gain setting for your specific application.
The TPA2039D1YFFT is rated for a maximum output power of 3.5 W per channel into a 4-ohm load. However, the actual power handling capability depends on the operating conditions, such as supply voltage, temperature, and load impedance. Consult the datasheet and application notes for more information on power handling and thermal management.
To ensure EMI compliance, follow the recommended PCB layout and design guidelines, use proper shielding and grounding, and implement EMI filtering techniques such as ferrite beads and capacitors. Additionally, consult the TPA2039D1YFFT EMI compliance application note for more information on minimizing EMI emissions.
A recommended power supply decoupling scheme for the TPA2039D1YFFT includes using a combination of ceramic and electrolytic capacitors, with a total capacitance of at least 10 uF, placed close to the device's power pins. This helps to filter out noise and ensure stable operation.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
TPA2039D1YFFT Overview

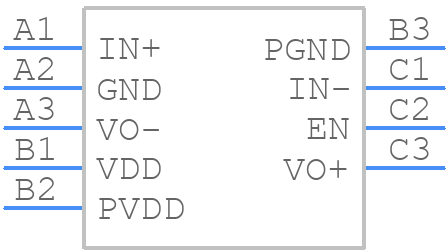

Use the download button to access the TPA2039D1YFFT schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like TPA20,
or try a keyword search, such as Audio/Video Amplifiers
