TPA3001D1PWPG4 - Texas Instruments

Description: TEXAS INSTRUMENTS - TPA3001D1PWPG4 - Audio Power Amplifier, 20 W, D, 1 Channel, 8V to 18V, HTSSOP, 24 Pins

Download TPA3001D1PWPG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

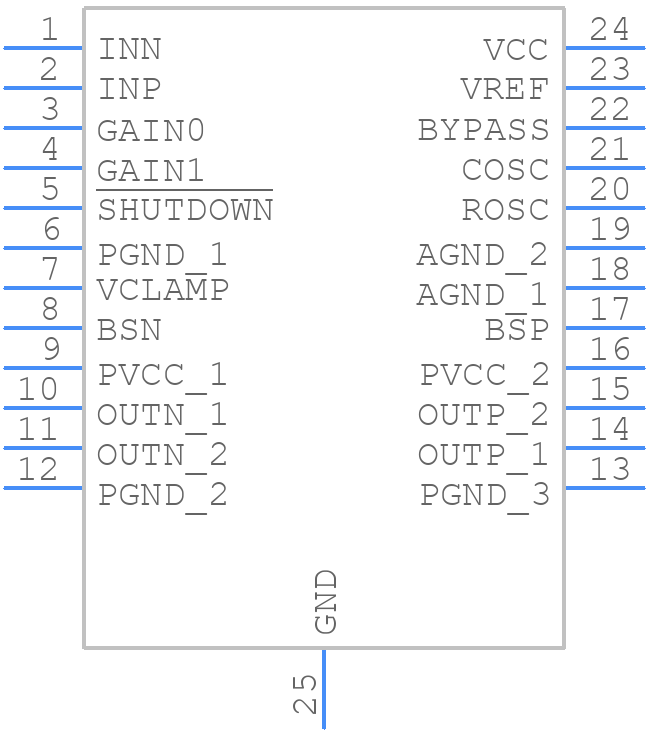

Symbol
TPA3001D1PWPG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPA3001D1PWPG4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PWP0024B
click to zoom
3D Models
TPA3001D1PWPG4 - Texas Instruments - 3D model - Small Outline Packages - PWP0024B
click to zoom

TPA3001D1PWPG4 Details

  • Manufacturer Part Number:

    TPA3001D1PWPG4

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    TSSOP

  • Pin Count:

    24

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    3.9

  • Bandwidth-Nom:

    20 kHz

  • Consumer IC Type:

    CLASS D AUDIO AMPLIFIER

  • Gain:

    36 dB

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e4

  • Length:

    7.8 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    20 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP24,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    15 mA

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

TPA3001D1PWPG4 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout for the TPA3001D1PWPG4 in the application note SLAA382A. It suggests using a 4-layer PCB with a solid ground plane, and placing the device near the edge of the board to improve heat dissipation.
  • The input capacitor values depend on the input voltage, frequency, and desired ripple rejection. TI recommends using X7R or X5R ceramic capacitors with a minimum capacitance of 2.2uF. A higher capacitance value can be used for better ripple rejection, but it may increase the startup time.
  • The maximum allowed voltage on the bootstrap pin (VBST) is VCC + 0.3V. Exceeding this voltage can damage the internal bootstrap diode and affect the device's reliability.
  • Check the input voltage, enable pin (EN), and shutdown pin (SD) to ensure they are within the recommended operating conditions. Also, verify that the bootstrap capacitor is properly connected and the PCB layout is correct. If the issue persists, consult the TI support forum or contact a TI representative for further assistance.
  • Yes, the TPA3001D1PWPG4 can be used in a stereo audio application by using two devices, one for each channel. However, it's essential to ensure that the devices are properly synchronized and that the PCB layout is designed to minimize crosstalk and electromagnetic interference (EMI).

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPA3001D1PWPG4 Overview

Use the download button to access the TPA3001D1PWPG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPA30, or try a keyword search, such as Audio/Video Amplifiers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
