TPA3001D1PWPRG4 - Texas Instruments

Description: Audio Amp Speaker 1-CH Mono 20W Class-D 24-Pin HTSSOP EP T/R

Download TPA3001D1PWPRG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

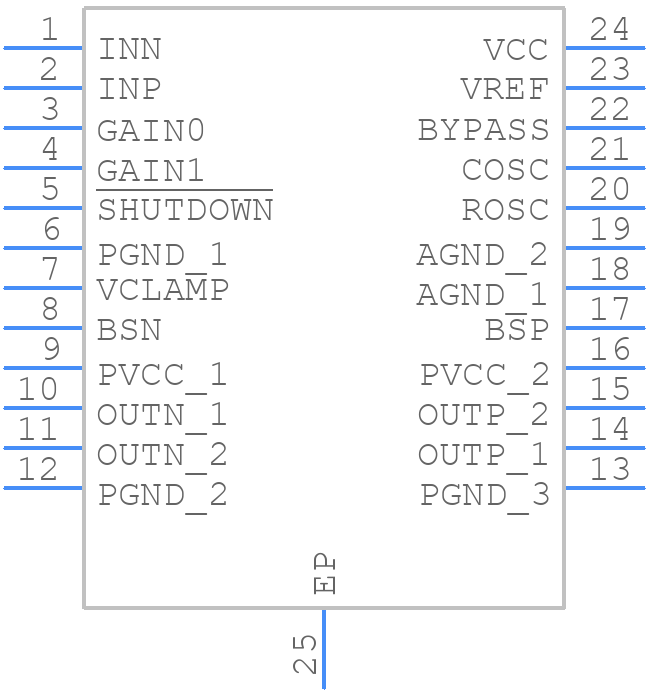

TPA3001D1PWPRG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPA3001D1PWPRG4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - TPA3001D1PWPRG4*1
click to zoom
3D Models
TPA3001D1PWPRG4 - Texas Instruments - 3D model - Small Outline Packages - TPA3001D1PWPRG4*1
click to zoom

TPA3001D1PWPRG4 Details

  • Manufacturer Part Number:

    TPA3001D1PWPRG4

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Package Description:

    HTSSOP-24

  • Pin Count:

    24

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Bandwidth-Nom:

    20 kHz

  • Consumer IC Type:

    CLASS D AUDIO AMPLIFIER

  • Gain:

    36 dB

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e4

  • Length:

    7.8 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    20 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP24,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    15 mA

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

TPA3001D1PWPRG4 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout for the TPA3001D1PWPRG4 in the datasheet, but it's also recommended to follow the guidelines in the TI application note 'TPA3001D1 PCB Layout Guidelines' (SLVAU62) for optimal thermal performance.
  • The input capacitor values depend on the input voltage, output voltage, and output current requirements. TI recommends using the 'TPA3001D1 Input Capacitor Selection Guide' (SLVAU63) to determine the correct input capacitor values for your specific application.
  • The maximum output current capability of the TPA3001D1PWPRG4 is 3.5A per channel, but this can be limited by the thermal performance of the PCB and the ambient temperature. It's recommended to follow the thermal design guidelines and perform thermal simulations to ensure the device operates within its thermal limits.
  • The TPA3001D1PWPRG4 has built-in short-circuit protection, but it's recommended to add external circuitry to detect and respond to short-circuit conditions. TI provides an example circuit in the datasheet and application notes to implement short-circuit protection.
  • The recommended operating voltage range for the TPA3001D1PWPRG4 is 4.5V to 26V, but it's recommended to operate the device within the specified voltage range for the specific application to ensure optimal performance and reliability.
