TPA3008D2PHPR - Texas Instruments

Description: Audio Amplifiers 10-W Stereo Class-D

Download TPA3008D2PHPR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

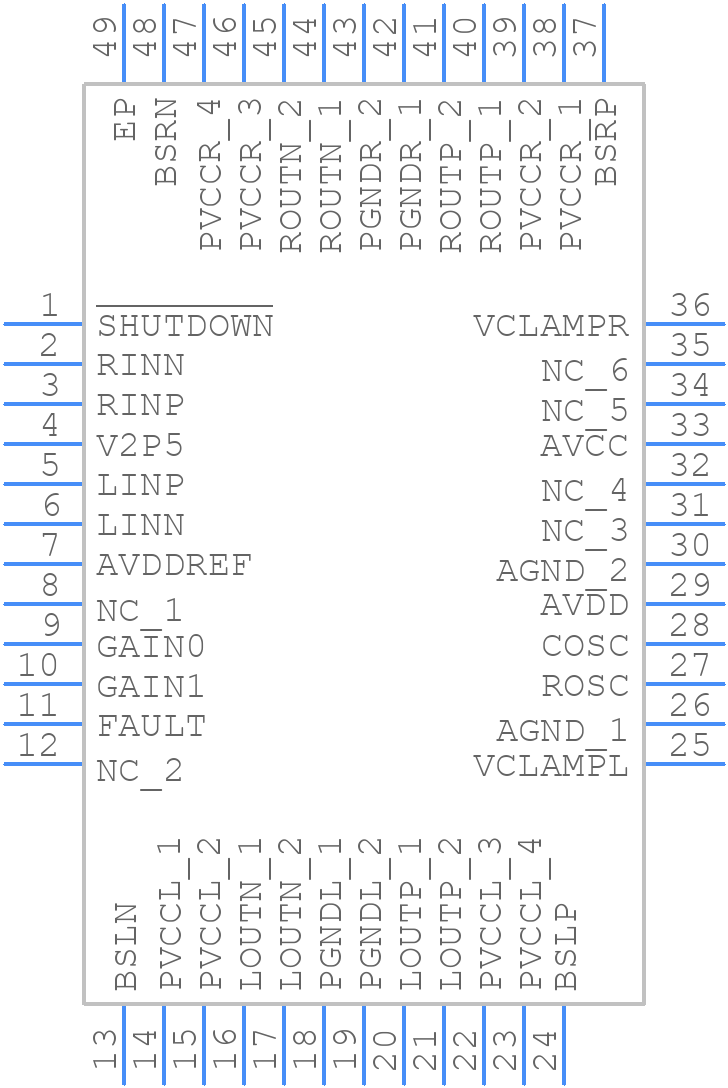

TPA3008D2PHPR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPA3008D2PHPR - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - PHP (S-PQFP-G48)/2021
click to zoom
3D Models
TPA3008D2PHPR - Texas Instruments - 3D model - Quad Flat Packages - PHP (S-PQFP-G48)/2021
click to zoom

TPA3008D2PHPR Details

  • Manufacturer Part Number:

    TPA3008D2PHPR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Pin Count:

    48

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Bandwidth-Nom:

    22 kHz

  • Consumer IC Type:

    CLASS D AUDIO AMPLIFIER

  • Gain:

    31.8 dB

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    4

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    10 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTFQFP

  • Package Equivalence Code:

    TQFP48,.35SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    22 mA

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    8.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

TPA3008D2PHPR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the TPA3008D2PHPR evaluation module documentation, which includes a thermal pad and vias to improve heat dissipation. It's essential to follow this layout to ensure optimal thermal performance.
  • The gain setting depends on the input signal level and the desired output power. TI provides a gain setting table in the datasheet, but it's essential to consider the specific requirements of your application and adjust the gain accordingly to avoid clipping or distortion.
  • The maximum power dissipation of the TPA3008D2PHPR is dependent on the ambient temperature, supply voltage, and output power. TI provides a power dissipation calculation formula in the datasheet, which takes into account these factors. It's crucial to calculate the power dissipation accurately to ensure the device operates within its safe operating area.
  • The TPA3008D2PHPR has built-in overvoltage protection (OVP) and undervoltage protection (UVP) circuits. However, it's still recommended to add external protection components, such as voltage regulators and TVS diodes, to ensure the device is protected from voltage transients and faults.
