TPA3100D2PHP - Texas Instruments

Description: Texas Instruments TPA3100D2PHP Audio Amplifier IC, Class-D Stereo, 48-Pin HTQFP

Download TPA3100D2PHP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

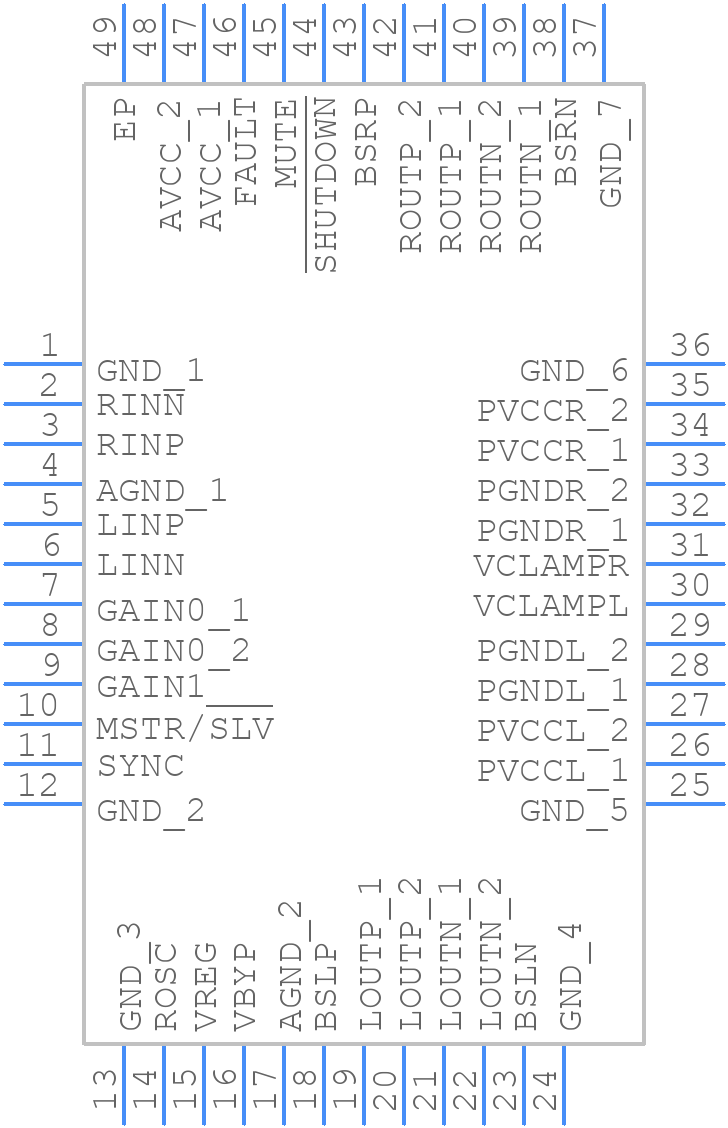

TPA3100D2PHP - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPA3100D2PHP - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - PHP HTQFP
click to zoom
3D Models
TPA3100D2PHP - Texas Instruments - 3D model - Quad Flat Packages - PHP HTQFP
click to zoom

TPA3100D2PHP Details

  • Manufacturer Part Number:

    TPA3100D2PHP

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Pin Count:

    48

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Bandwidth-Nom:

    22 kHz

  • Consumer IC Type:

    CLASS D AUDIO AMPLIFIER

  • Gain:

    36 dB

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Noise Figure-Nom:

    102 dB

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    20 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTFQFP

  • Package Equivalence Code:

    TQFP48,.35SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    26 mA

  • Supply Voltage-Max (Vsup):

    26 V

  • Supply Voltage-Min (Vsup):

    10 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

TPA3100D2PHP Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPA3100D2PHP involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. TI provides a recommended layout in the datasheet and application notes.
  • The gain setting depends on the input signal level, desired output power, and system impedance. TI provides a gain setting table in the datasheet, and you can also use the TI Audio Amplifier Gain Calculator tool to help select the optimal gain setting.
  • The maximum power dissipation of the TPA3100D2PHP is dependent on the ambient temperature and the thermal resistance of the PCB. TI provides a power dissipation calculation formula in the datasheet, and you can also use the TI Power Dissipation Calculator tool to estimate the maximum power dissipation.
  • To protect the TPA3100D2PHP from overheating, ensure good thermal conduction by using a heat sink or a thermally conductive PCB, keep the device away from heat sources, and implement thermal monitoring and shutdown circuits if necessary.
  • The recommended input coupling capacitor value depends on the input signal frequency and impedance. A general rule of thumb is to use a capacitor with a value of 1-10 μF, but TI recommends consulting the datasheet and application notes for specific guidance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPA3100D2PHP Overview

Use the download button to access the TPA3100D2PHP schematic symbol, PCB footprint, and 3D model.
