TPA3113D2PWP - Texas Instruments

Description: Texas Instruments TPA3113D2PWP 2-Channel Audio Amplifier IC, Class-D Stereo, 28-Pin HTSSOP

Download TPA3113D2PWP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

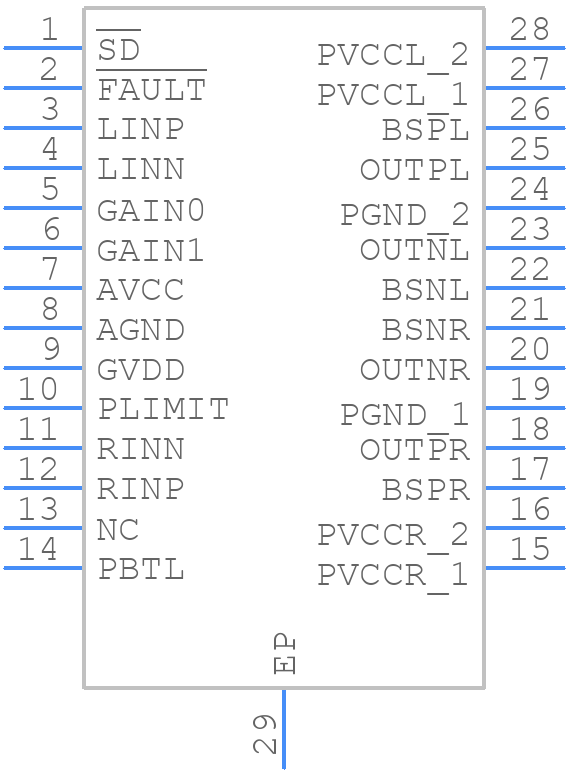

Symbol
TPA3113D2PWP - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPA3113D2PWP - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - pwp(r-pdso-g28)-ren1
click to zoom
3D Models
TPA3113D2PWP - Texas Instruments - 3D model - Small Outline Packages - pwp(r-pdso-g28)-ren1
click to zoom

TPA3113D2PWP Details

  • Manufacturer Part Number:

    TPA3113D2PWP

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Pin Count:

    28

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Bandwidth-Nom:

    22 kHz

  • Consumer IC Type:

    CLASS D AUDIO AMPLIFIER

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e4

  • Length:

    9.7 mm

  • Moisture Sensitivity Level:

    3

  • Noise Figure-Nom:

    102 dB

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    6 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP28,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    50 mA

  • Supply Voltage-Max (Vsup):

    26 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

TPA3113D2PWP Frequently Asked Questions (FAQs)

  • TI recommends using a 10uF ceramic capacitor in parallel with a 100nF ceramic capacitor, placed as close as possible to the power pins (VIN and GND) to ensure stable operation.
  • The gain setting depends on the input signal level and the desired output power. A higher gain setting can provide more output power, but may also increase distortion. Start with a moderate gain setting (e.g., 20dB) and adjust based on your specific application requirements.
  • The maximum output power of the TPA3113D2PWP depends on the supply voltage and load impedance. With a 24V supply and 4Ω load, the maximum output power is approximately 15W per channel. Refer to the datasheet for more information on output power vs. supply voltage and load impedance.
  • Ensure good thermal conduction by mounting the IC on a heat sink or a PCB with a large copper area. Keep the ambient temperature below 85°C, and avoid blocking airflow around the IC. Monitor the IC's temperature using the thermal shutdown feature (TSD) and take corrective action if overheating occurs.
  • The MUTE pin is an active-low input that allows you to mute the amplifier output. When the MUTE pin is pulled low, the amplifier output is disabled, and the IC enters a low-power state. Use the MUTE pin to implement a mute function in your application, such as when switching between audio sources.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPA3113D2PWP Overview

Use the download button to access the TPA3113D2PWP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPA31, or try a keyword search, such as Audio/Video Amplifiers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
