TPA3118D2DAP - Texas Instruments

Description: Texas Instruments TPA3118D2DAP 2-Channel Audio Amplifier IC, Class-D Mono/Stereo, 32-Pin HTSSOP

Download TPA3118D2DAP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

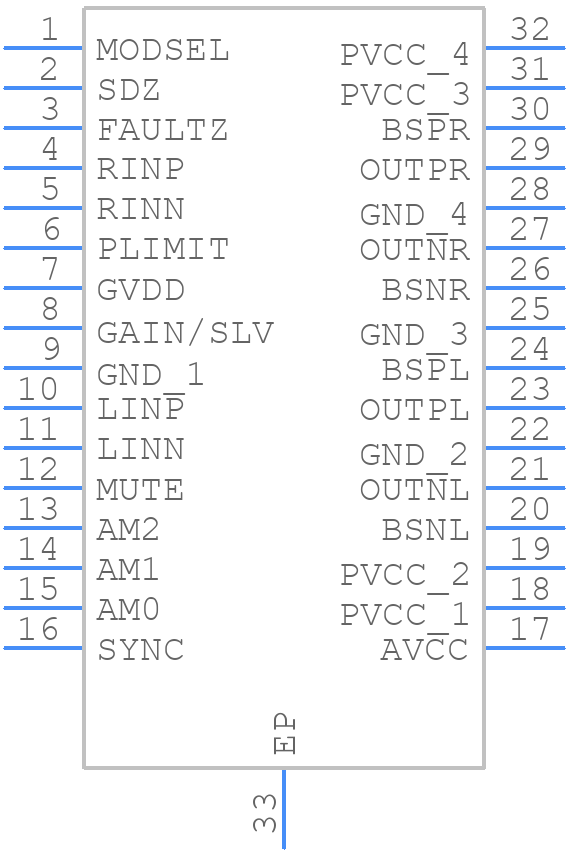

TPA3118D2DAP - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPA3118D2DAP - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - dap(r-pdso-g32)
click to zoom
3D Models
TPA3118D2DAP - Texas Instruments - 3D model - Small Outline Packages - dap(r-pdso-g32)
click to zoom

TPA3118D2DAP Details

  • Manufacturer Part Number:

    TPA3118D2DAP

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Bandwidth-Nom:

    22 kHz

  • Consumer IC Type:

    CLASS D AUDIO AMPLIFIER

  • Gain:

    36 dB

  • JESD-30 Code:

    R-PDSO-G32

  • JESD-609 Code:

    e4

  • Length:

    11 mm

  • Moisture Sensitivity Level:

    3

  • Noise Figure-Nom:

    102 dB

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    30 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP32,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    50 mA

  • Supply Voltage-Max (Vsup):

    26 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6.1 mm

TPA3118D2DAP Frequently Asked Questions (FAQs)

  • TI recommends using a 10uF ceramic capacitor in parallel with a 100nF ceramic capacitor, placed as close as possible to the power pins (VIN and GND) to ensure stable operation.
  • The gain setting depends on the input signal level and the desired output power. TI provides a gain calculation formula in the datasheet. For a typical application, a gain of 20-30 dB is recommended. However, it's essential to experiment with different gain settings to find the optimal value for your specific use case.
  • The TPA3118D2DAP can handle up to 20W of continuous power per channel into a 4Ω load. However, this value can vary depending on the ambient temperature, supply voltage, and other factors. Always check the thermal and power dissipation calculations to ensure safe operation.
  • Implement thermal protection by monitoring the device temperature (TJ) and shutting down the amplifier if it exceeds 150°C. You can also use thermal pads or heat sinks to improve heat dissipation. Ensure good airflow and avoid blocking the airflow around the device.
  • Follow the recommended PCB layout guidelines in the datasheet, which include keeping the power traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. Avoid routing sensitive analog signals near the power traces.
