Texas Instruments provides a recommended PCB layout in the TPA311D datasheet, which includes a thermal pad connected to a large copper area on the bottom layer to dissipate heat. Additionally, it's recommended to use a 4-layer PCB with a solid ground plane to reduce electromagnetic interference (EMI).
The output filter design depends on the specific application and speaker impedance. A general guideline is to use a 2nd-order low-pass filter with a cutoff frequency around 50 kHz to 100 kHz. The filter components should be chosen to provide a damping factor of around 1 to 2 to ensure stability and minimize ringing.
The maximum power dissipation of the TPA311D depends on the ambient temperature and the thermal resistance of the PCB. According to the datasheet, the maximum power dissipation is around 20W at 25°C ambient temperature. However, this value can be derated at higher temperatures. It's essential to perform thermal analysis and simulation to ensure the device operates within the safe operating area.
The TPA311D has built-in overvoltage protection (OVP) and undervoltage protection (UVP) circuits. However, it's still recommended to add external protection circuits, such as a voltage supervisor or a power-on reset circuit, to ensure the device is powered up correctly and safely. Additionally, a TVS diode or a zener diode can be used to protect the device from voltage transients and spikes.
The recommended input capacitor value is around 10uF to 22uF, with a voltage rating of at least 25V. A low-ESR ceramic capacitor or a film capacitor is recommended due to their low equivalent series resistance (ESR) and high reliability. The input capacitor should be placed close to the device's input pins to minimize noise and ripple.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPA311D Overview

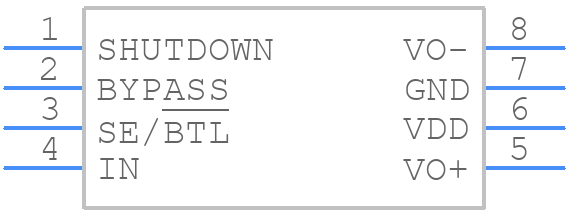

Use the download button to access the TPA311D schematic symbol, PCB footprint, and 3D model.
