TPA3124D2PWP - Texas Instruments

Description: Audio Amplifiers 15W Stereo Class-D Aud Pwr Amp

Download TPA3124D2PWP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

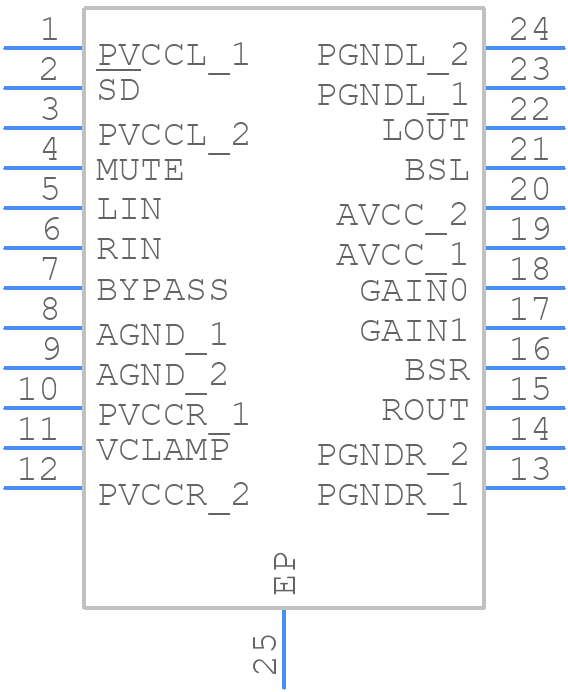

TPA3124D2PWP - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPA3124D2PWP - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PWP0024B
click to zoom
3D Models
TPA3124D2PWP - Texas Instruments - 3D model - Small Outline Packages - PWP0024B
click to zoom

TPA3124D2PWP Details

  • Manufacturer Part Number:

    TPA3124D2PWP

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    24

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Bandwidth-Nom:

    22 kHz

  • Consumer IC Type:

    CLASS D AUDIO AMPLIFIER

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e4

  • Length:

    7.8 mm

  • Moisture Sensitivity Level:

    3

  • Noise Figure-Nom:

    92 dB

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    15 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP24,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    30 mA

  • Supply Voltage-Max (Vsup):

    26 V

  • Supply Voltage-Min (Vsup):

    10 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

TPA3124D2PWP Frequently Asked Questions (FAQs)

  • TI recommends using a 10uF ceramic capacitor in parallel with a 100nF ceramic capacitor, placed as close as possible to the power pins (VIN and GND) to ensure stable operation.
  • The gain setting depends on the specific application and desired output power. TI provides a gain setting formula in the datasheet, but it's recommended to experiment with different gain settings and measure the output power to find the optimal setting for your specific use case.
  • The maximum allowed ambient temperature for the TPA3124D2PWP is 85°C. Operating the device above this temperature may reduce its reliability and lifespan.
  • Yes, the TPA3124D2PWP can be used in a bridged configuration to increase the output power. However, this requires careful consideration of the output stage and load impedance to avoid overheating and ensure stable operation.
  • TI recommends using a voltage supervisor or a power-on reset circuit to protect the device from overvoltage and undervoltage conditions. Additionally, a voltage regulator can be used to regulate the power supply voltage to the recommended operating range.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPA3124D2PWP Overview

Use the download button to access the TPA3124D2PWP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPA31, or try a keyword search, such as Audio/Video Amplifiers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
