TPA3129D2DAP - Texas Instruments

Description: 2-Ch 15-W Differential Analog Input Class-D Amplifier With Low Idle Power Dissipation

Download TPA3129D2DAP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

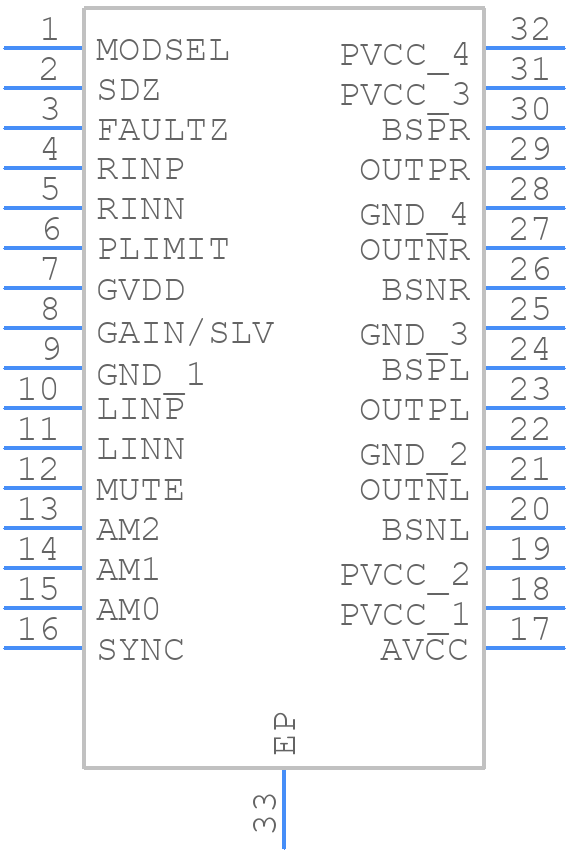

TPA3129D2DAP - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPA3129D2DAP - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DAP (R-PDSO-G32)
click to zoom
3D Models
TPA3129D2DAP - Texas Instruments - 3D model - Small Outline Packages - DAP (R-PDSO-G32)
click to zoom

TPA3129D2DAP Details

  • Manufacturer Part Number:

    TPA3129D2DAP

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2017-06-30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Bandwidth-Nom:

    22 kHz

  • Consumer IC Type:

    CLASS D AUDIO AMPLIFIER

  • Gain:

    36 dB

  • JESD-30 Code:

    R-PDSO-G32

  • JESD-609 Code:

    e4

  • Length:

    11 mm

  • Moisture Sensitivity Level:

    3

  • Noise Figure-Nom:

    102 dB

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    15 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP32,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    26 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6.1 mm

TPA3129D2DAP Frequently Asked Questions (FAQs)

  • TI recommends using a 10uF ceramic capacitor in parallel with a 100nF ceramic capacitor, placed as close as possible to the power pins (VIN and GND) to ensure stable operation.
  • The gain setting depends on the specific application requirements. TI provides a gain calculation formula in the datasheet. For a more detailed analysis, use TI's WEBENCH Filter Designer tool to simulate and optimize the gain setting for your specific application.
  • The TPA3129D2DAP can handle up to 20W of continuous power per channel, but this can vary depending on the specific application, PCB design, and thermal management. Always check the thermal performance and power handling in your specific design.
  • To ensure EMI compliance, follow proper PCB design practices, such as using a solid ground plane, minimizing trace lengths, and using shielding and filtering components as needed. Additionally, TI provides EMI reduction techniques in the datasheet and application notes.
  • TI provides a recommended layout and routing guide in the datasheet and application notes. Key considerations include keeping the power traces short and wide, using a solid ground plane, and minimizing signal trace lengths and crossings.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPA3129D2DAP Overview

Use the download button to access the TPA3129D2DAP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPA31, or try a keyword search, such as Audio/Video Amplifiers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
