TPA3130D2DAPR - Texas Instruments

Description: 15W Filter-Free Class D Stereo Amplifier with AM Avoidance

Download TPA3130D2DAPR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

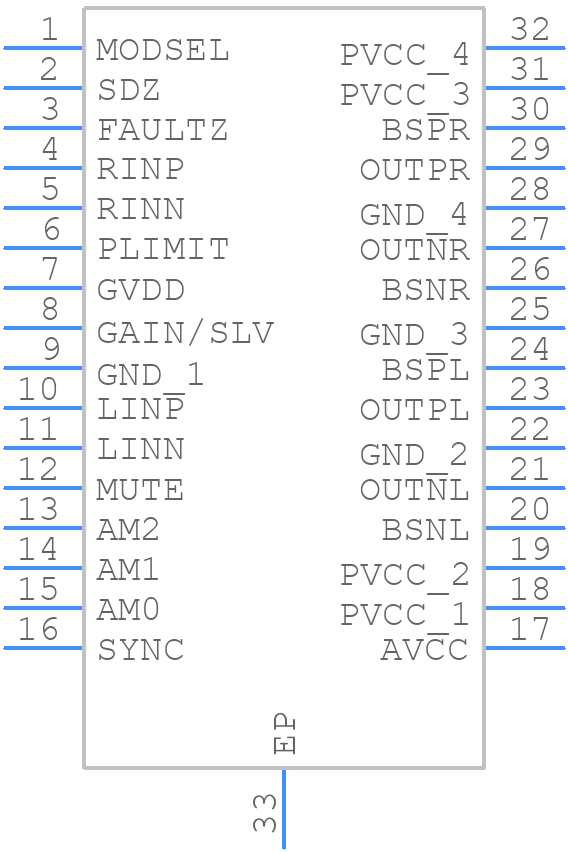

Symbol
TPA3130D2DAPR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPA3130D2DAPR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - HTSSOP dap
click to zoom
3D Models
TPA3130D2DAPR - Texas Instruments - 3D model - Small Outline Packages - HTSSOP dap
click to zoom

TPA3130D2DAPR Details

  • Manufacturer Part Number:

    TPA3130D2DAPR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Bandwidth-Nom:

    22 kHz

  • Consumer IC Type:

    CLASS D AUDIO AMPLIFIER

  • Gain:

    36 dB

  • JESD-30 Code:

    R-PDSO-G32

  • JESD-609 Code:

    e4

  • Length:

    11 mm

  • Moisture Sensitivity Level:

    3

  • Noise Figure-Nom:

    102 dB

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    15 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP32,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    50 mA

  • Supply Voltage-Max (Vsup):

    26 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6.1 mm

TPA3130D2DAPR Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for optimal performance. TI recommends a 4-layer PCB with a solid ground plane, and to keep the input and output traces as short as possible. Also, decoupling capacitors should be placed close to the device.
  • The gain setting depends on the input signal level and the desired output power. TI recommends using the gain setting calculator tool or consulting the application notes to determine the optimal gain setting for your specific application.
  • The maximum power dissipation of the TPA3130D2DAPR is 3.5W. However, this value can be affected by the ambient temperature, PCB layout, and other factors. It's essential to perform thermal analysis and ensure proper heat sinking to prevent overheating.
  • Yes, the TPA3130D2DAPR can be used in a bridged configuration to increase the output power. However, this requires careful consideration of the PCB layout, component selection, and thermal management to ensure reliable operation.
  • TI recommends using voltage regulators and overvoltage protection circuits to prevent damage from voltage transients. Additionally, undervoltage protection can be achieved using a voltage supervisor or a reset IC.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPA3130D2DAPR Overview

Use the download button to access the TPA3130D2DAPR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPA31, or try a keyword search, such as Audio/Video Amplifiers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
