TPA3132D2RHBT - Texas Instruments

Description: 25W Filter-Free Class-D Stereo Amplifier In Space Saving QFN

Download TPA3132D2RHBT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

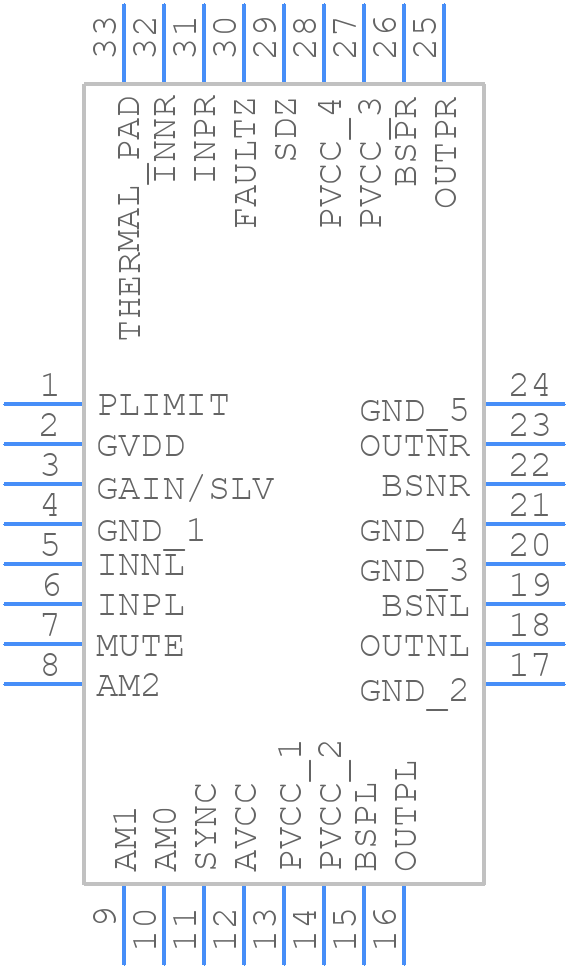

Symbol
TPA3132D2RHBT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPA3132D2RHBT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHB (S-PVQFN-N32)-D
click to zoom
3D Models
TPA3132D2RHBT - Texas Instruments - 3D model - Quad Flat No-Lead - RHB (S-PVQFN-N32)-D
click to zoom

TPA3132D2RHBT Details

  • Manufacturer Part Number:

    TPA3132D2RHBT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Consumer IC Type:

    CLASS D AUDIO AMPLIFIER

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Noise Figure-Nom:

    105 dB

  • Number of Channels:

    2

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    25 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    26 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

TPA3132D2RHBT Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPA3132D2RHBT involves keeping the input and output traces short and away from each other, using a ground plane, and placing decoupling capacitors close to the device. TI provides a recommended layout in the datasheet and application notes.
  • The gain setting depends on the input signal level, desired output power, and system impedance. TI provides a gain calculation formula in the datasheet. You can also use TI's online gain calculator tool or consult with a TI engineer for guidance.
  • The maximum power dissipation of the TPA3132D2RHBT is dependent on the ambient temperature and the thermal resistance of the PCB. TI provides a power dissipation calculation formula in the datasheet. Typically, the device can dissipate up to 2.5W at 25°C ambient temperature.
  • To protect the TPA3132D2RHBT from overheating, ensure good thermal conduction by using a heat sink or a thermally conductive PCB material. Also, implement thermal monitoring and shutdown circuits to prevent damage from excessive temperatures.
  • The recommended input and output coupling capacitor value depends on the application frequency range and impedance. Typically, a 1-10uF capacitor is used for input coupling and a 10-100uF capacitor is used for output coupling. Consult the datasheet and application notes for specific guidance.
