TPA3136AD2PWPR - Texas Instruments

Description: 10-W Inductor Free Stereo (BTL) Class-D Audio Amplifier with Ultra Low EMI

Download TPA3136AD2PWPR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

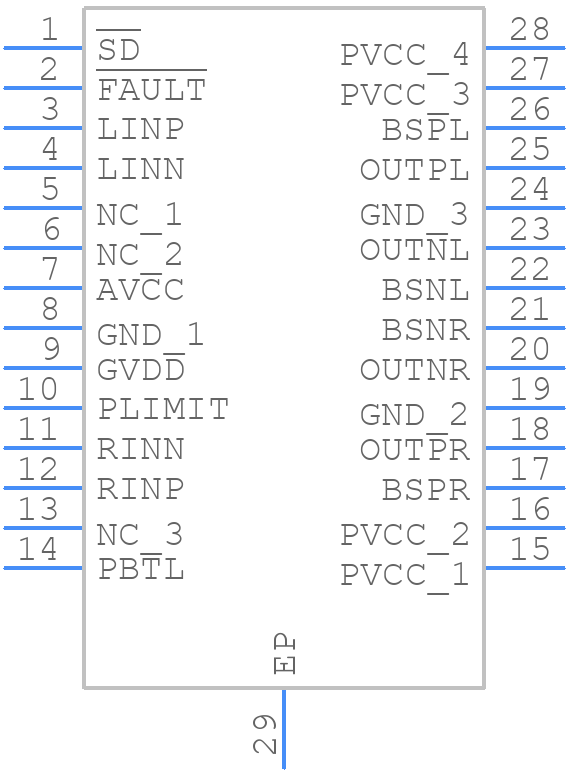

Symbol
TPA3136AD2PWPR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPA3136AD2PWPR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PWP(R-PDSO-G28)-
click to zoom
3D Models
TPA3136AD2PWPR - Texas Instruments - 3D model - Small Outline Packages - PWP(R-PDSO-G28)-
click to zoom

TPA3136AD2PWPR Details

  • Manufacturer Part Number:

    TPA3136AD2PWPR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2017-08-31

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Bandwidth-Nom:

    22 kHz

  • Consumer IC Type:

    CLASS D AUDIO AMPLIFIER

  • Gain:

    26 dB

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e4

  • Length:

    9.7 mm

  • Moisture Sensitivity Level:

    3

  • Noise Figure-Nom:

    102 dB

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    10 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    40 mA

  • Supply Voltage-Max (Vsup):

    14.4 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

TPA3136AD2PWPR Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPA3136AD2PWPR should prioritize thermal dissipation. Place the device near a thermal pad or a heat sink, and ensure good copper pour coverage around the device. Avoid routing high-current traces under the device, and keep the thermal pad connected to a solid ground plane.
  • The gain setting depends on the specific application requirements. For example, if you need more volume, use a higher gain setting. However, be cautious of potential oscillations or instability at higher gains. Start with a lower gain setting and adjust as needed to achieve the desired output level.
  • Operating the TPA3136AD2PWPR at a lower supply voltage than the recommended 12V may reduce the maximum output power and affect the amplifier's overall performance. Ensure the supply voltage is within the recommended range to maintain optimal performance and prevent potential damage to the device.
  • Implement overvoltage protection (OVP) and overcurrent protection (OCP) circuits to safeguard the TPA3136AD2PWPR. OVP can be achieved using a voltage supervisor or a zener diode, while OCP can be implemented using a current sense resistor and a comparator.
  • The TPA3136AD2PWPR has a maximum junction temperature (TJ) of 150°C. Ensure good thermal design practices, such as using a heat sink or thermal pad, to keep the device within the recommended operating temperature range. Monitor the device's temperature and adjust the design as needed to prevent overheating.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPA3136AD2PWPR Overview

Use the download button to access the TPA3136AD2PWPR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPA31, or try a keyword search, such as Audio/Video Amplifiers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
