SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Supply Current-Max:
40 mA
Supply Voltage-Max (Vsup):
14.4 V
Supply Voltage-Min (Vsup):
4.5 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
TPA3144D2PWP Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the TPA3144D2PWP datasheet, which includes guidelines for component placement, trace routing, and thermal management. Following this layout can help minimize noise, reduce EMI, and ensure optimal performance.
The gain setting of the TPA3144D2PWP depends on the specific requirements of your application. You can use the gain selection table in the datasheet to determine the correct gain setting based on your input signal level and desired output power. You can also use the TI Audio Amplifier Gain Calculator tool to help with gain selection.
The maximum power dissipation of the TPA3144D2PWP is dependent on the ambient temperature and the thermal resistance of the PCB. According to the datasheet, the maximum power dissipation is 3.5W at 25°C ambient temperature. However, this value can be derated based on the actual operating conditions. It's essential to perform thermal calculations to ensure the device operates within its safe operating area.
The TPA3144D2PWP has built-in overvoltage protection (OVP) and undervoltage protection (UVP) circuits. However, it's still recommended to add external protection components, such as voltage regulators and TVS diodes, to ensure the device operates within its recommended voltage range. Additionally, you can use a voltage supervisor IC to monitor the supply voltage and reset the device in case of an overvoltage or undervoltage condition.
The recommended input coupling capacitor value for the TPA3144D2PWP depends on the input signal frequency and impedance. A general rule of thumb is to use a capacitor with a value of 1-10uF, with a voltage rating that matches the input signal amplitude. However, it's essential to perform AC analysis and simulation to determine the optimal capacitor value for your specific application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPA3144D2PWP Overview

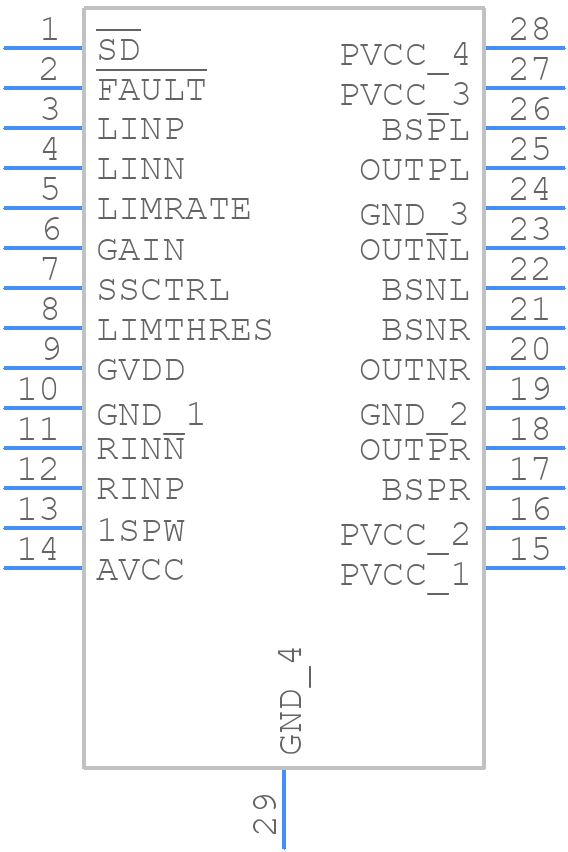

Use the download button to access the TPA3144D2PWP schematic symbol, PCB footprint, and 3D model.
