Texas Instruments provides a recommended PCB layout in the TPA321D datasheet, which includes guidelines for component placement, trace routing, and thermal management. Following this layout can help minimize noise, reduce EMI, and ensure optimal thermal performance.
The input capacitor selection depends on the input signal frequency, amplitude, and source impedance. A general rule of thumb is to choose a capacitor with a capacitance value that is at least 10 times the input impedance of the amplifier. Additionally, consider the capacitor's voltage rating, ESR, and dielectric material to ensure it can handle the input signal and amplifier's operating conditions.
The maximum power dissipation of the TPA321D depends on the ambient temperature, PCB layout, and thermal management. According to the datasheet, the maximum power dissipation is 15W at 25°C ambient temperature. However, this value can be derated based on the actual operating conditions. It's essential to perform thermal analysis and simulation to ensure the amplifier operates within its safe operating area.
To protect the TPA321D from overvoltage and overcurrent conditions, consider adding external protection components such as voltage regulators, TVS diodes, and current-limiting resistors. Additionally, ensure that the amplifier is operated within its recommended operating conditions, and consider implementing overvoltage and overcurrent detection circuits to shut down the amplifier in case of fault conditions.
The recommended operating voltage range for the TPA321D is 4.5V to 26V. Operating the amplifier outside this range may affect its performance, stability, and reliability. It's essential to ensure that the power supply voltage is within this range and that the amplifier is operated within its recommended operating conditions.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
TPA321D Overview

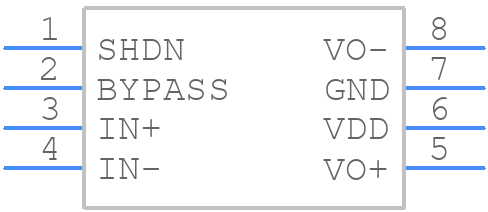

Use the download button to access the TPA321D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPA32,
or try a keyword search, such as Audio/Video Amplifiers
