SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.1 mm
Supply Current-Max:
1.5 mA
Supply Voltage-Max (Vsup):
5.5 V
Supply Voltage-Min (Vsup):
2.5 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
3 mm
TPA321DGNR Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the TPA321DGNR datasheet, which includes guidelines for component placement, trace routing, and thermal management. Following this layout can help minimize noise, reduce electromagnetic interference (EMI), and ensure optimal thermal performance.
The selection of input and output capacitors depends on the specific application requirements. In general, low-ESR capacitors with a high ripple current rating are recommended. The datasheet provides guidelines for capacitor selection, and TI also offers a capacitor selection tool to help with this process.
The maximum power dissipation of the TPA321DGNR is dependent on the ambient temperature and the thermal resistance of the PCB. The datasheet provides a power dissipation graph and thermal resistance data to help estimate the maximum power dissipation. In general, the device can dissipate up to 20W of power.
The TPA321DGNR has built-in overvoltage protection (OVP) and overcurrent protection (OCP) features. However, additional protection components such as TVS diodes and fuses may be required depending on the specific application requirements. The datasheet provides guidelines for implementing these protection components.
The TPA321DGNR has a high power density, and thermal management is critical to ensure reliable operation. The datasheet recommends using a heat sink with a thermal interface material (TIM) to reduce the thermal resistance. Additionally, ensuring good airflow and using thermal vias on the PCB can help to dissipate heat.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPA321DGNR Overview

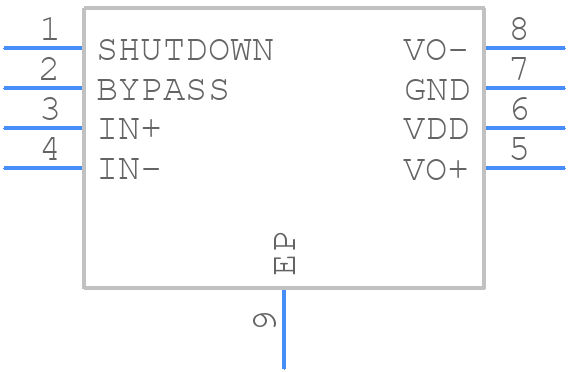

Use the download button to access the TPA321DGNR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPA32,
or try a keyword search, such as Audio/Video Amplifiers
