TPA3220DDWR - Texas Instruments

Description: 50W Stereo / 100W Peak HD Analog-Input Pad-Down Class-D Amplifier

Download TPA3220DDWR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

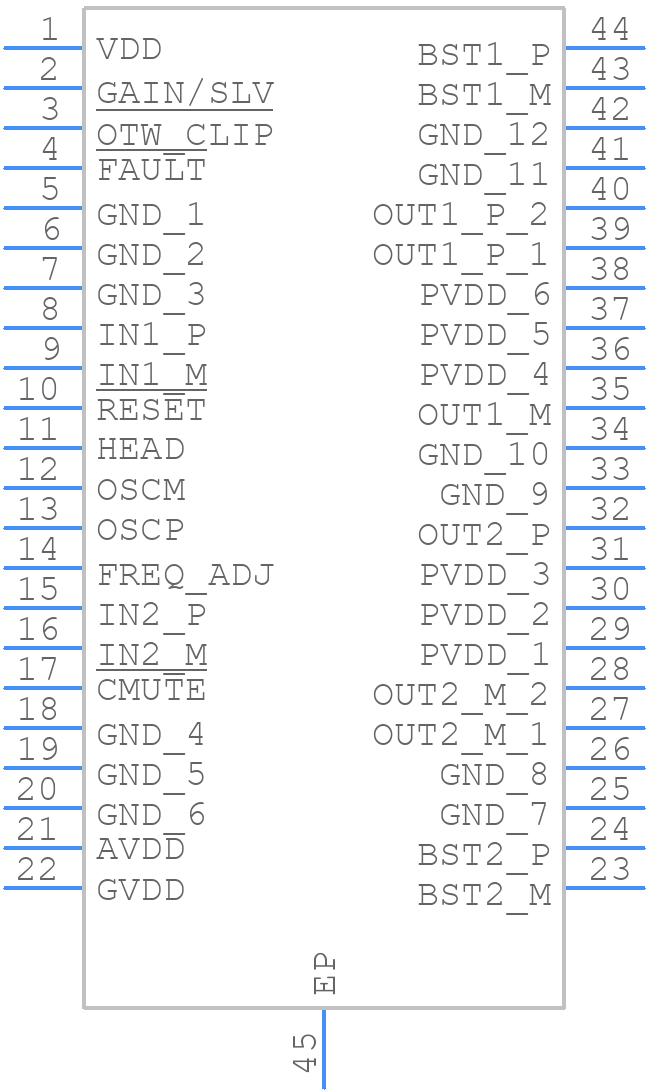

TPA3220DDWR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPA3220DDWR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - HTSSOP
click to zoom
3D Models
TPA3220DDWR - Texas Instruments - 3D model - Small Outline Packages - HTSSOP
click to zoom

TPA3220DDWR Details

  • Manufacturer Part Number:

    TPA3220DDWR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2018-01-11

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Consumer IC Type:

    CLASS D AUDIO AMPLIFIER

  • Gain:

    18 dB

  • JESD-30 Code:

    R-PDSO-G44

  • JESD-609 Code:

    e4

  • Length:

    14 mm

  • Moisture Sensitivity Level:

    3

  • Noise Figure-Nom:

    108 dB

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    44

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    60 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP44,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6.1 mm

TPA3220DDWR Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for optimal performance. TI recommends a 4-layer PCB with a solid ground plane, and to keep the input and output traces as short as possible. Additionally, decoupling capacitors should be placed close to the device.
  • The gain setting depends on the specific application requirements. TI recommends using the gain setting calculator tool or consulting the datasheet's gain setting table to determine the optimal gain setting for your specific use case.
  • The maximum power dissipation of the TPA3220DDWR is 3.5W. However, this value can vary depending on the operating conditions, such as supply voltage, output power, and ambient temperature.
  • Yes, the TPA3220DDWR can be used in a bridged configuration to increase the output power. However, this requires careful consideration of the output stage and load impedance to avoid overheating and ensure stable operation.
  • To protect the TPA3220DDWR from overheating, ensure good thermal conductivity between the device and the PCB, use a heat sink if necessary, and implement thermal monitoring and shutdown mechanisms in your design.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPA3220DDWR Overview

Use the download button to access the TPA3220DDWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPA32, or try a keyword search, such as Audio/Video Amplifiers
