SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
1.2 mm
Supply Voltage-Max (Vsup):
45 V
Supply Voltage-Min (Vsup):
10 V
Surface Mount:
YES
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.635 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
6.1 mm
TPA3223DDVR Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the TPA3223DDVR datasheet, which includes guidelines for component placement, trace routing, and thermal management. Following this layout can help minimize noise, reduce EMI, and ensure optimal performance.
The gain setting of the TPA3223DDVR depends on the specific requirements of your application. You can use the gain selection table in the datasheet to determine the correct gain setting based on your input signal level, output power, and desired signal-to-noise ratio.
The maximum power dissipation of the TPA3223DDVR is dependent on the ambient temperature and the thermal resistance of the PCB. According to the datasheet, the maximum power dissipation is 3.5W at 25°C ambient temperature. However, this value can be derated based on the thermal resistance of the PCB and the ambient temperature.
The TPA3223DDVR has built-in overvoltage protection (OVP) and undervoltage protection (UVP) circuits. However, it's still recommended to add external protection circuits, such as voltage regulators and TVS diodes, to ensure that the device is protected from voltage transients and surges.
The recommended input capacitor value and type depend on the specific requirements of your application. A general guideline is to use a capacitor with a value between 1uF to 10uF, and a type that is suitable for high-frequency applications, such as a ceramic or film capacitor.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPA3223DDVR Overview

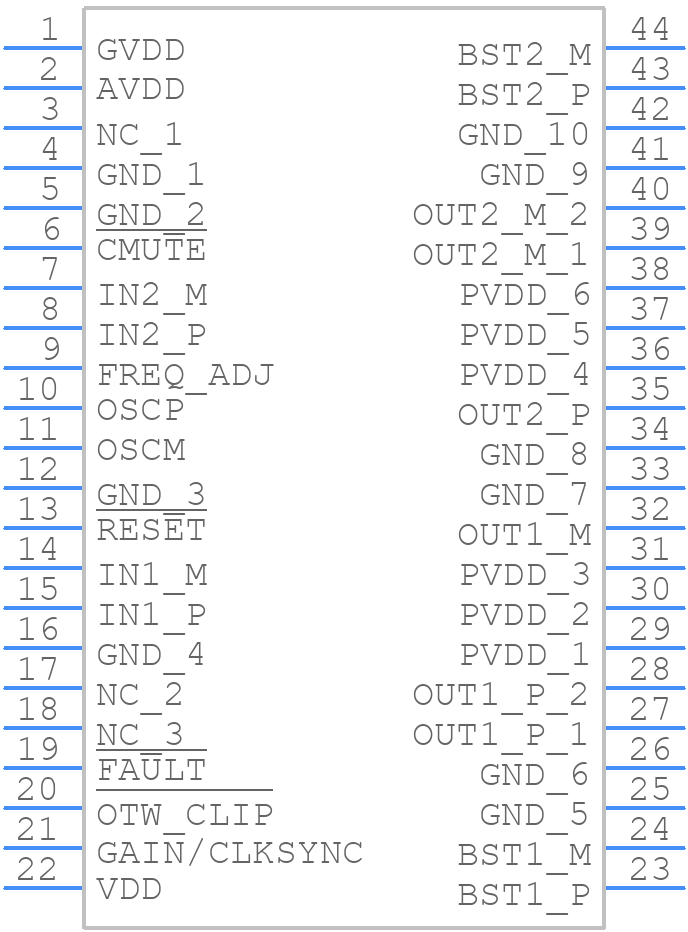

Use the download button to access the TPA3223DDVR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPA32,
or try a keyword search, such as Audio/Video Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
