SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
1.2 mm
Supply Voltage-Max (Vsup):
13.2 V
Supply Voltage-Min (Vsup):
10.8 V
Surface Mount:
YES
Temperature Grade:
COMMERCIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.635 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
6.1 mm
TPA3244DDW Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the TPA3244DDW datasheet, which includes guidelines for component placement, trace routing, and thermal management. Additionally, the TI website offers a PCB layout guide and a thermal design guide for audio amplifiers.
The gain setting of the TPA3244DDW depends on the input signal level, output power requirements, and desired signal-to-noise ratio. TI provides a gain setting calculator tool on their website, which can help engineers determine the optimal gain setting for their specific application.
The maximum power dissipation of the TPA3244DDW is dependent on the ambient temperature, PCB thermal design, and output power. Engineers should ensure safe operation by following the thermal design guidelines, using a suitable heat sink, and monitoring the device temperature. TI provides a thermal calculator tool to help estimate the maximum power dissipation.
The TPA3244DDW has built-in EMI filters, but additional filtering may be required depending on the application. Engineers can use external filters, such as RC filters or ferrite beads, to reduce noise and EMI. TI provides application notes and design guides on EMI filtering and noise reduction techniques.
The recommended input and output coupling capacitor value depends on the specific application and frequency response requirements. TI recommends using a minimum of 1uF for the input coupling capacitor and 10uF for the output coupling capacitor, but the optimal value may vary depending on the system design.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPA3244DDW Overview

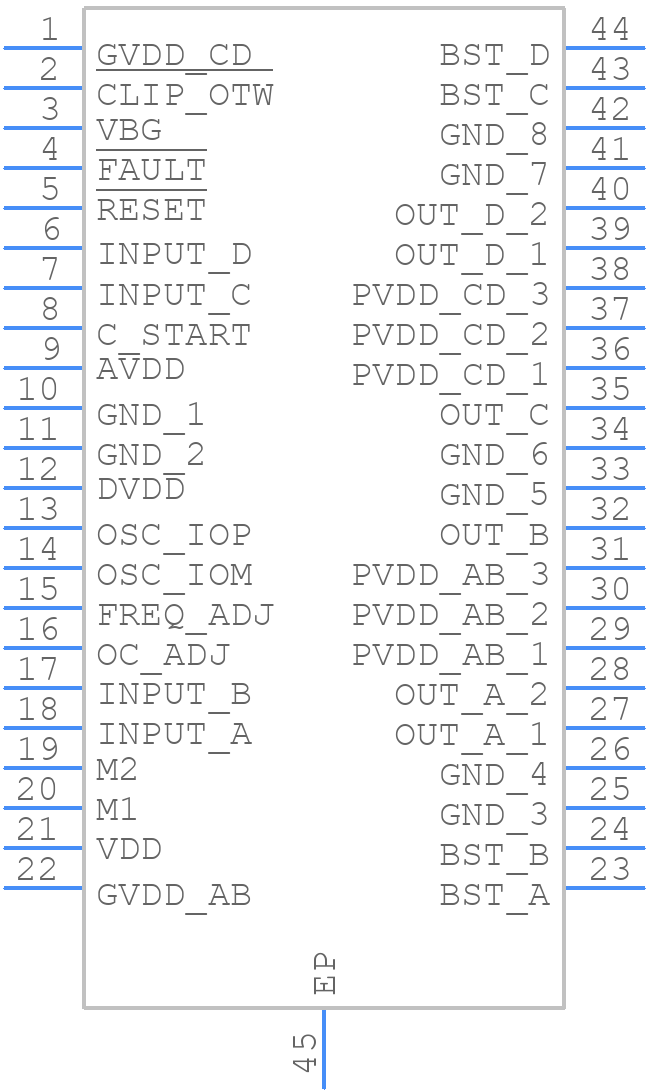

Use the download button to access the TPA3244DDW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPA32,
or try a keyword search, such as Audio/Video Amplifiers
