TPA3245DDV - Texas Instruments

Description: Amplifier IC 2-Channel (Stereo) Class D 44-HTSSOP

Download TPA3245DDV Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

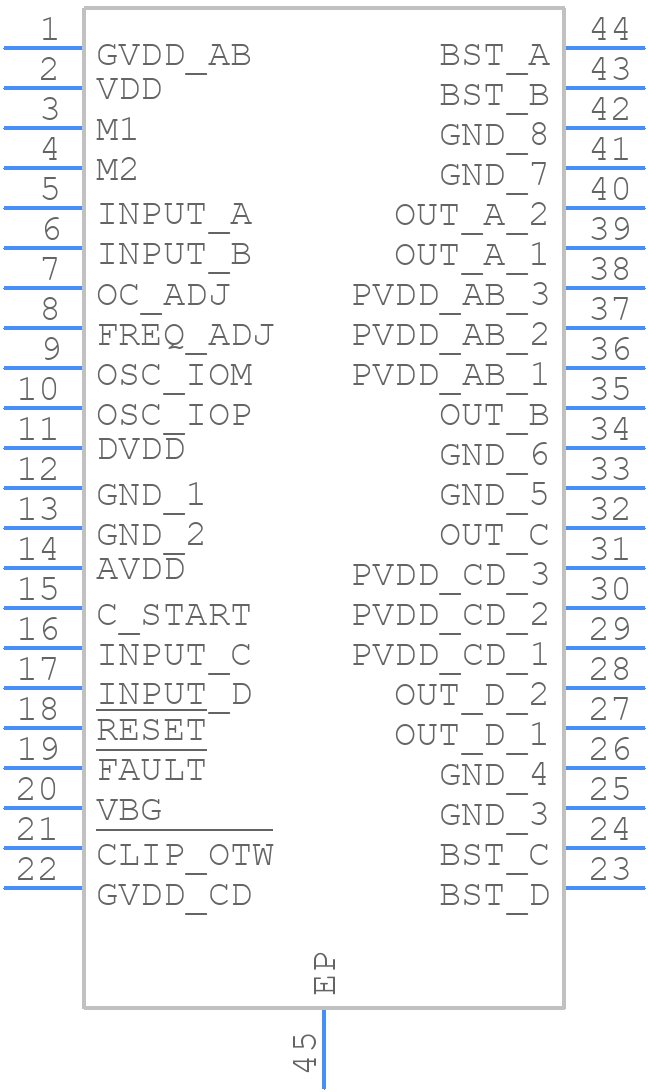

TPA3245DDV - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPA3245DDV - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DDV0044D
click to zoom
3D Models
TPA3245DDV - Texas Instruments - 3D model - Small Outline Packages - DDV0044D
click to zoom

TPA3245DDV Details

  • Manufacturer Part Number:

    TPA3245DDV

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2016-10-29

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Consumer IC Type:

    CLASS D AUDIO AMPLIFIER

  • Gain:

    18 dB

  • JESD-30 Code:

    R-PDSO-G44

  • JESD-609 Code:

    e4

  • Length:

    14 mm

  • Moisture Sensitivity Level:

    3

  • Noise Figure-Nom:

    112 dB

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    44

  • Operating Temperature-Max:

    70 °C

  • Output Power-Nom:

    115 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    13.2 V

  • Supply Voltage-Min (Vsup):

    10.8 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6.1 mm

TPA3245DDV Frequently Asked Questions (FAQs)

  • According to TI's application notes, a 10uF ceramic capacitor in parallel with a 100nF ceramic capacitor is recommended for power supply decoupling, placed as close to the device as possible.
  • The gain setting depends on the specific application requirements. TI recommends using the gain calculation formula provided in the datasheet, and then fine-tuning the gain through experimentation and measurement.
  • The TPA3245DDV can handle up to 20W of continuous power, but this can be limited by the thermal design and heat sinking of the system. Refer to the thermal design guidelines in the datasheet for more information.
  • To prevent oscillations, ensure that the layout is well-designed, with short traces and minimal parasitic inductance. Also, use the recommended component values and follow the application notes for stability compensation.
  • TI recommends a 4-layer PCB with a solid ground plane, and a separate power plane for the amplifier. Keep the input and output traces short and separate, and use a star-grounding configuration to minimize noise and oscillations.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPA3245DDV Overview

Use the download button to access the TPA3245DDV schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPA32, or try a keyword search, such as Audio/Video Amplifiers
