Technical Content
Part Image

TPA3251D2DDVR - Texas Instruments

Description: 175W Stereo / 350W Mono PurePath™ Ultra-HD, Analog-In Class-D Amplifier

Download TPA3251D2DDVR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

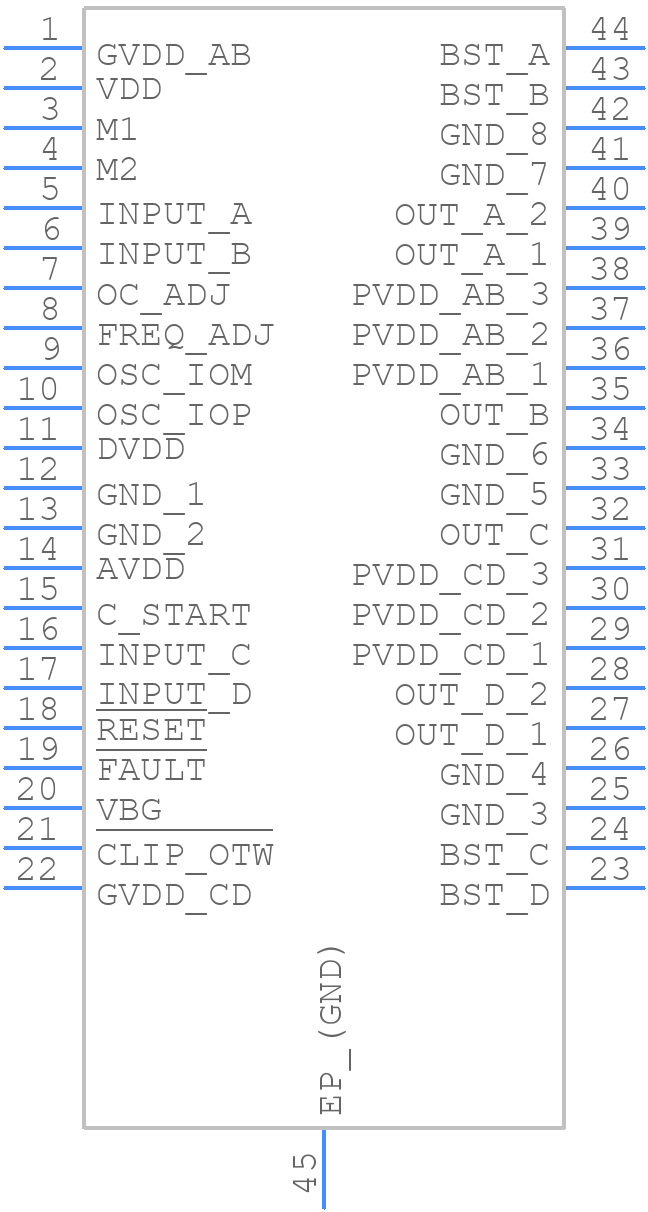

Symbol
TPA3251D2DDVR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPA3251D2DDVR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DDV0044D
click to zoom
3D Models
TPA3251D2DDVR - Texas Instruments - 3D model - Small Outline Packages - DDV0044D
click to zoom

TPA3251D2DDVR Details

  • Manufacturer Part Number:

    TPA3251D2DDVR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    44

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    IT ALSO REQUIRES PVDD=36

  • Consumer IC Type:

    CLASS D AUDIO AMPLIFIER

  • JESD-30 Code:

    R-PDSO-G44

  • JESD-609 Code:

    e4

  • Length:

    14 mm

  • Moisture Sensitivity Level:

    3

  • Noise Figure-Nom:

    111 dB

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    44

  • Operating Temperature-Max:

    70 °C

  • Output Power-Nom:

    175 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP44,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    13.2 V

  • Supply Voltage-Min (Vsup):

    10.8 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6.1 mm

TPA3251D2DDVR Frequently Asked Questions (FAQs)

  • According to TI's application notes, a 10uF ceramic capacitor in parallel with a 1uF ceramic capacitor, placed as close as possible to the power pins, is recommended for power supply decoupling.
  • TI recommends a 4-layer PCB with a solid ground plane, and to keep the audio signal traces as short as possible. Additionally, the power supply traces should be routed away from the audio signal traces to minimize noise coupling.
  • The maximum power dissipation of the TPA3251D2DDVR is 3.5W, and it's recommended to keep the junction temperature below 150°C to ensure reliable operation.
  • Yes, the TPA3251D2DDVR can be used in a bridged configuration to increase the output power. However, it's essential to follow TI's application notes and ensure that the amplifier is properly configured and biased to avoid overheating and oscillation.
  • TI recommends using a voltage supervisor or a power-on reset circuit to ensure that the amplifier is only enabled when the power supply voltage is within the recommended range (10V to 26V). Additionally, overvoltage protection devices such as TVS diodes can be used to protect the amplifier from voltage transients.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPA3251D2DDVR Overview

Use the download button to access the TPA3251D2DDVR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPA32, or try a keyword search, such as Audio/Video Amplifiers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
