TI recommends a 4-layer PCB with a solid ground plane on the bottom layer, and a thermal relief pattern on the top layer to improve heat dissipation. Additionally, keeping the input and output traces short and wide can help reduce thermal resistance.
To ensure stability, use a low-ESR capacitor (e.g., X7R or X5R) for the input and output capacitors, and keep the feedback resistors (Rf and Ri) as close to the IC as possible. Also, avoid using long wires or traces for the feedback connections.
The maximum power dissipation (PD) is dependent on the ambient temperature (TA) and the thermal resistance (RθJA). Use the formula: PD = (TJ - TA) / RθJA, where TJ is the junction temperature (150°C max). For example, at TA = 50°C, PD ≈ 2.5W.
Yes, the TPA4411MRTJT can be used in a bridged configuration to increase the output power. Connect the outputs of two amplifiers in anti-phase, and use a common-mode choke or a differential capacitor to filter the output. However, ensure that the total output power does not exceed the maximum rating.
Use a voltage regulator or a voltage supervisor to ensure the supply voltage remains within the recommended range (4.5V to 18V). Add overvoltage protection (OVP) and undervoltage protection (UVP) circuits, such as a zener diode or a voltage monitor IC, to prevent damage from voltage transients or faults.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPA4411MRTJT Overview

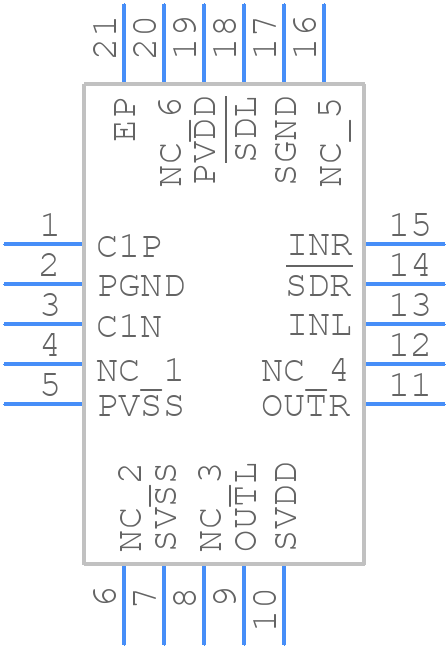

Use the download button to access the TPA4411MRTJT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPA44,
or try a keyword search, such as Audio/Video Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
