A good PCB layout for the TPA5051RSAR should minimize parasitic inductance and capacitance. Keep the input and output traces short and away from each other, and use a solid ground plane to reduce noise and electromagnetic interference (EMI).
The input capacitor value depends on the input voltage, output voltage, and desired ripple voltage. A general rule of thumb is to choose a capacitor with a value between 1-10uF, with a voltage rating at least 1.5 times the input voltage. Consult the datasheet and application notes for more specific guidance.
The TPA5051RSAR is rated for operation up to 85°C ambient temperature. However, it's recommended to derate the device's power dissipation and operating frequency as the temperature increases to ensure reliable operation.
To ensure EMC compliance, follow proper PCB layout and shielding guidelines, use a common-mode choke or ferrite bead on the input, and consider adding EMI filters or shielding to the device. Consult the datasheet and relevant EMC standards for more information.
The output capacitor value depends on the output voltage, output current, and desired ripple voltage. A general rule of thumb is to choose a capacitor with a value between 10-100uF, with a voltage rating at least 1.5 times the output voltage. Ceramic or electrolytic capacitors are suitable for most applications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPA5051RSAR Overview

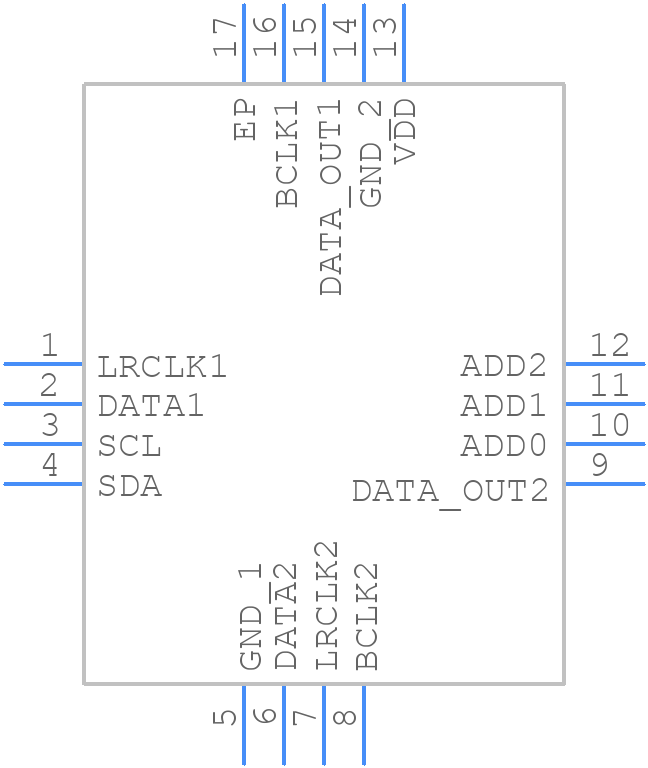

Use the download button to access the TPA5051RSAR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPA50,
or try a keyword search, such as Other Consumer ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
