SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Supply Current-Max:
9 mA
Supply Voltage-Max (Vsup):
5.5 V
Supply Voltage-Min (Vsup):
4 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.635 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
TPA6013A4PWP Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout for the TPA6013A4PWP in the application note SLVAU73, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
The gain setting for the TPA6013A4PWP depends on the specific requirements of your application. Texas Instruments provides a gain selection table in the datasheet, which can be used to determine the optimal gain setting based on the input signal level and desired output power. Additionally, the application note SLVAU73 provides more detailed information on gain selection and optimization.
The maximum power dissipation of the TPA6013A4PWP is dependent on the ambient temperature and the thermal resistance of the PCB. Texas Instruments provides a power dissipation calculation formula in the datasheet, which can be used to determine the maximum power dissipation for a given application. Additionally, the application note SLVAU73 provides guidelines for thermal management and heat sinking to ensure reliable operation.
The TPA6013A4PWP has built-in EMI filtering, but additional filtering may be required depending on the specific requirements of your application. Texas Instruments recommends using a combination of passive and active filtering techniques, such as RC filters and common-mode chokes, to minimize noise and EMI. The application note SLVAU73 provides more detailed information on EMI filtering and noise reduction techniques.
The recommended input and output coupling capacitor value for the TPA6013A4PWP depends on the specific requirements of your application, such as the input signal frequency and amplitude, and the output load impedance. Texas Instruments recommends using a minimum of 1uF for the input coupling capacitor and 2.2uF for the output coupling capacitor, but the optimal value may need to be determined through experimentation and simulation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPA6013A4PWP Overview

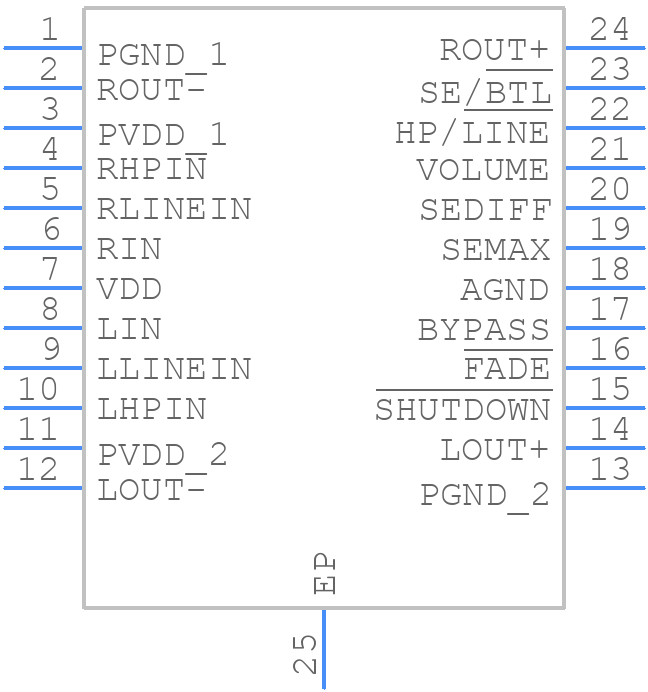

Use the download button to access the TPA6013A4PWP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPA60,
or try a keyword search, such as Audio Control ICs
