Texas Instruments provides a recommended PCB layout in the TPA6020A2RGWT evaluation module documentation, which includes guidelines for component placement, trace routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The input capacitor values depend on the input signal frequency, amplitude, and source impedance. A general rule of thumb is to use capacitors with a value of 1-10uF, with a voltage rating that exceeds the maximum input voltage. TI also provides a capacitor selection guide in the datasheet.
The maximum power dissipation of the TPA6020A2RGWT is 2.5W. To ensure it doesn't overheat, use a heat sink with a thermal resistance of less than 10°C/W, and ensure good airflow around the device. Additionally, follow the thermal design guidelines in the datasheet to minimize thermal resistance.
Yes, the TPA6020A2RGWT can be used in a stereo audio application. To configure it, use two devices, one for each channel, and connect the input signals to the respective VIN+ and VIN- pins. Use a common ground plane and ensure that the power supplies are decoupled to minimize crosstalk between channels.
To troubleshoot common issues, start by verifying the power supply voltage, input signal amplitude, and output load impedance. Check for proper PCB layout and component selection. Use an oscilloscope to measure the output signal and identify any distortion or oscillation. Consult the datasheet and application notes for troubleshooting guides and FAQs.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPA6020A2RGWT Overview

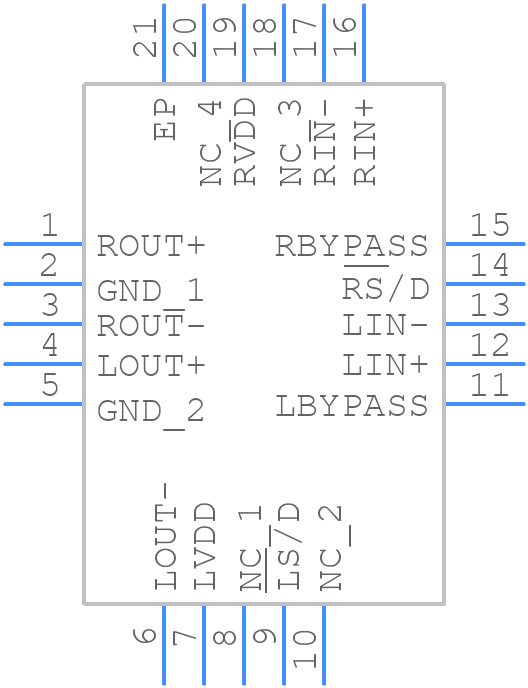

Use the download button to access the TPA6020A2RGWT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPA60,
or try a keyword search, such as Audio/Video Amplifiers
