Texas Instruments provides a recommended PCB layout in the TPA6041A4RHBR evaluation module documentation, which includes guidelines for component placement, trace routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The gain setting of the TPA6041A4RHBR depends on the specific application requirements. Texas Instruments provides a gain selection table in the datasheet, which can be used to determine the appropriate gain setting based on the input signal level and desired output power. Additionally, the device's gain can be adjusted using external resistors.
The maximum power dissipation of the TPA6041A4RHBR is dependent on the ambient temperature and the thermal resistance of the PCB. According to the datasheet, the maximum power dissipation is 2.5W at a junction temperature of 150°C. However, it's recommended to perform thermal analysis and simulation to determine the maximum power dissipation for a specific application.
The TPA6041A4RHBR has built-in overvoltage protection (OVP) and undervoltage protection (UVP) circuits. However, it's recommended to add external protection components, such as voltage regulators and TVS diodes, to ensure that the device operates within the recommended voltage range and to protect against voltage transients and spikes.
The recommended input and output coupling capacitor value for the TPA6041A4RHBR depends on the specific application requirements and the frequency range of operation. A general guideline is to use capacitors with a value of 1uF to 10uF, with a voltage rating that exceeds the maximum input or output voltage. It's recommended to consult the datasheet and application notes for more specific guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPA6041A4RHBR Overview

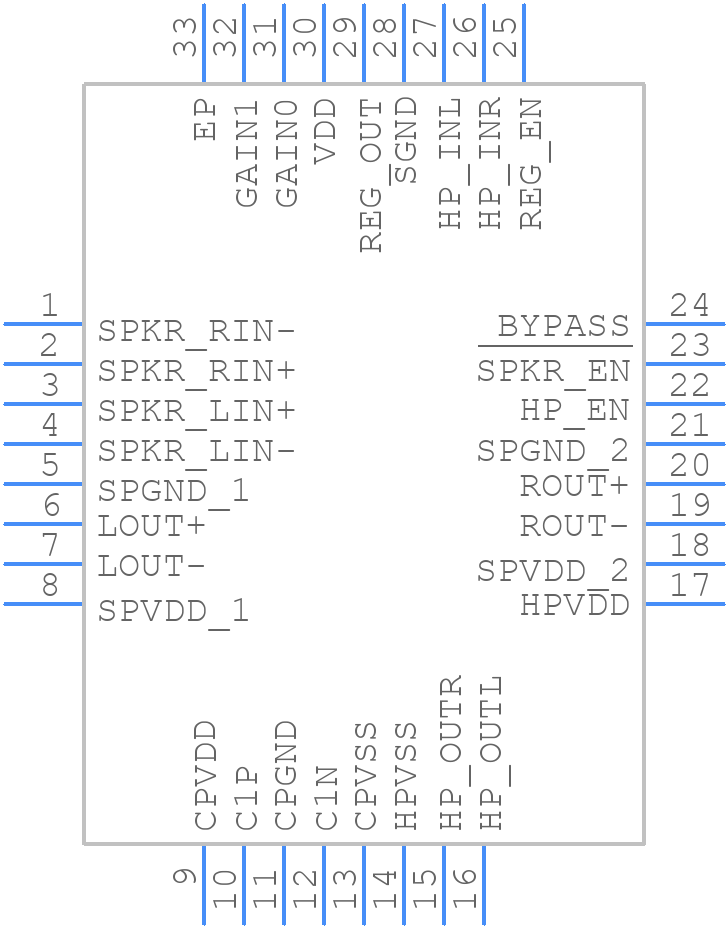

Use the download button to access the TPA6041A4RHBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPA60,
or try a keyword search, such as Audio/Video Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
