Texas Instruments provides a recommended PCB layout in the datasheet, which includes guidelines for component placement, trace routing, and thermal management. It's essential to follow these guidelines to ensure optimal performance and minimize electromagnetic interference (EMI).
The gain setting depends on the input signal level and the desired output power. The TPA6043A4RHBR has a gain range of 6 dB to 30 dB. You can use the gain calculation formula provided in the datasheet to determine the correct gain setting for your application.
The maximum power dissipation of the TPA6043A4RHBR is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 2.5 W at 25°C ambient temperature. However, this value can be derated based on the actual operating conditions.
To protect the TPA6043A4RHBR from overheating, you can implement thermal management techniques such as heat sinking, thermal vias, and thermal pads. Additionally, you can monitor the device temperature using the thermal shutdown feature, which will shut down the device if it exceeds a certain temperature threshold.
The recommended input coupling capacitor value depends on the input signal frequency and the desired high-pass filter cutoff frequency. A general guideline is to use a capacitor value between 1 μF to 10 μF. However, it's essential to consult the datasheet and perform simulations to determine the optimal capacitor value for your specific application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPA6043A4RHBR Overview

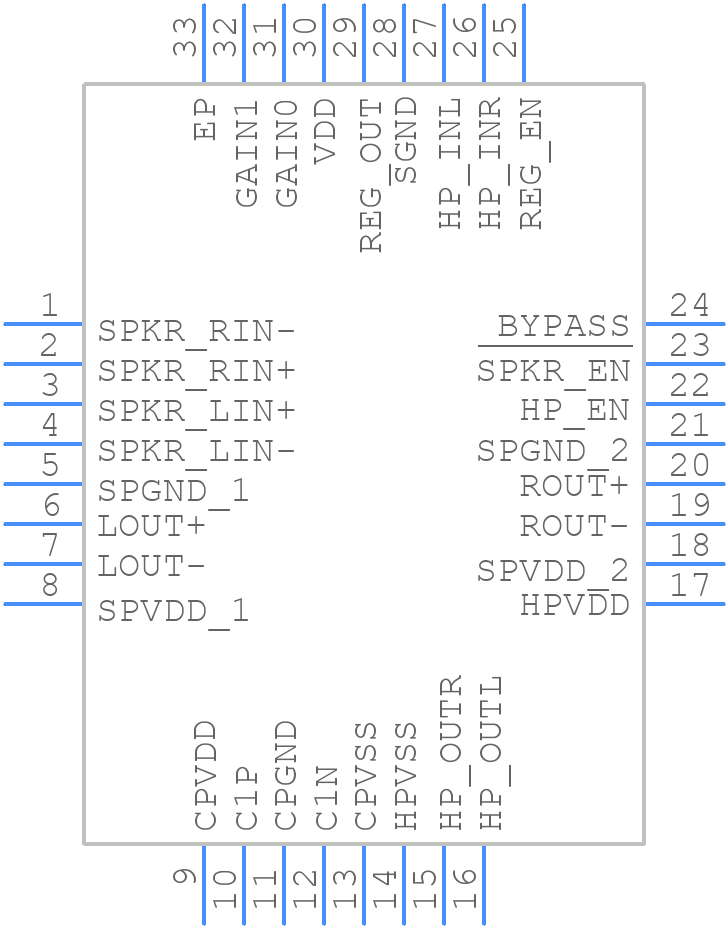

Use the download button to access the TPA6043A4RHBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPA60,
or try a keyword search, such as Audio/Video Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
