TPA6047A4RHBR - Texas Instruments

Description: 2W Stereo Audio Power Amplifier With DirectPath ™ Stereo Headphone Drive and Regulator

Download TPA6047A4RHBR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

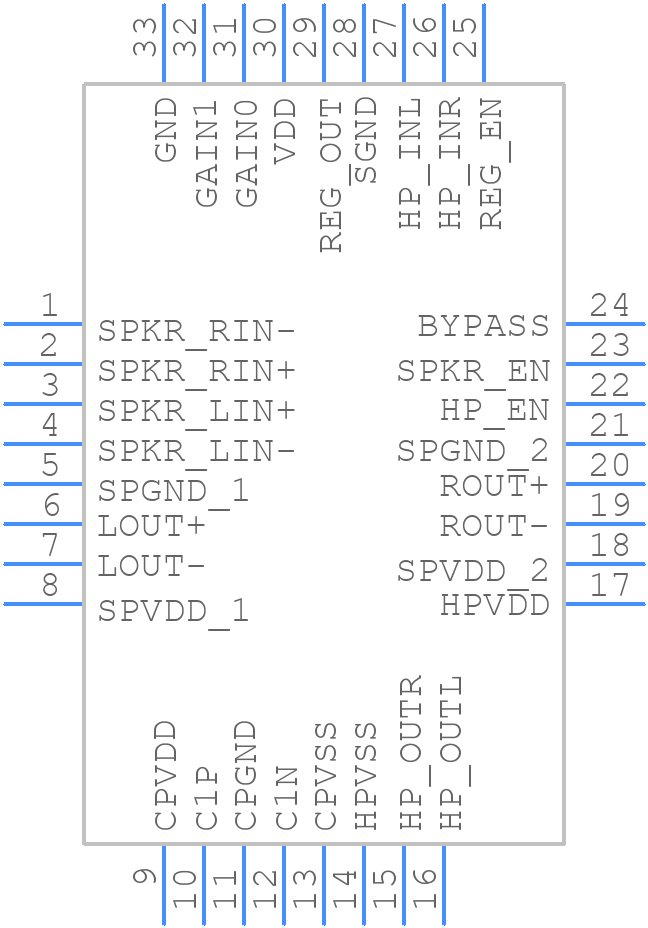

TPA6047A4RHBR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPA6047A4RHBR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHB (S-PVQFN-N32)_1
click to zoom
3D Models
TPA6047A4RHBR - Texas Instruments - 3D model - Quad Flat No-Lead - RHB (S-PVQFN-N32)_1
click to zoom

TPA6047A4RHBR Details

  • Manufacturer Part Number:

    TPA6047A4RHBR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    32

  • Country Of Origin:

    Malaysia, Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Bandwidth-Nom:

    20 kHz

  • Consumer IC Type:

    AUDIO AMPLIFIER

  • Gain:

    2.5 dB

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Noise Figure-Nom:

    99 dB

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    2 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    14 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

TPA6047A4RHBR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, which includes guidelines for component placement, trace routing, and thermal management. It's essential to follow these guidelines to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The gain setting depends on the input signal level and the desired output power. The TPA6047A4RHBR has a gain range of 10 dB to 30 dB. You can use the gain calculation formula provided in the datasheet to determine the correct gain setting for your application.
  • The maximum power dissipation of the TPA6047A4RHBR is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 2.5 W at 25°C ambient temperature. However, this value can be derated based on the actual operating conditions.
  • The TPA6047A4RHBR has built-in overvoltage protection (OVP) and undervoltage protection (UVP) circuits. However, it's still recommended to add external protection components, such as voltage regulators and TVS diodes, to ensure the device operates within the recommended voltage range.
  • The recommended input coupling capacitor value depends on the input signal frequency and the desired high-pass filter cutoff frequency. A general guideline is to use a capacitor value between 1 μF to 10 μF, with a voltage rating that matches the input signal amplitude.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPA6047A4RHBR Overview

Use the download button to access the TPA6047A4RHBR schematic symbol, PCB footprint, and 3D model.
