TPA6113A2DR - Texas Instruments

Description: Audio Amplifiers 40mW Stereo Audio Pwr Amp

Download TPA6113A2DR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

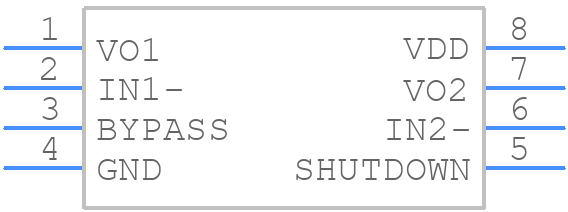

TPA6113A2DR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPA6113A2DR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D0008A
click to zoom
3D Models
TPA6113A2DR - Texas Instruments - 3D model - Small Outline Packages - D0008A
click to zoom

TPA6113A2DR Details

  • Manufacturer Part Number:

    TPA6113A2DR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Bandwidth-Nom:

    20 kHz

  • Consumer IC Type:

    AUDIO AMPLIFIER

  • Gain:

    20.1 dB

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    0.09 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

TPA6113A2DR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, which includes guidelines for component placement, trace routing, and thermal management. It's essential to follow these guidelines to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The gain setting depends on the input signal level and the desired output power. The TPA6113A2DR has a gain range of 6 dB to 26 dB. You can use the gain calculation formula provided in the datasheet to determine the correct gain setting for your application.
  • The maximum power dissipation of the TPA6113A2DR is dependent on the ambient temperature and the thermal resistance of the PCB. According to the datasheet, the maximum power dissipation is 2.5 W at 25°C ambient temperature. However, this value can be derated based on the thermal resistance of the PCB.
  • The TPA6113A2DR has built-in overvoltage protection (OVP) and undervoltage protection (UVP) circuits. However, it's still recommended to add external protection circuits, such as voltage regulators and TVS diodes, to ensure the device operates within the recommended voltage range.
  • The recommended input coupling capacitor value depends on the input signal frequency and the desired high-pass filter cutoff frequency. A general guideline is to use a capacitor value between 1 μF to 10 μF. However, it's recommended to consult the datasheet and application notes for more specific guidance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPA6113A2DR Overview

Use the download button to access the TPA6113A2DR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPA61, or try a keyword search, such as Audio/Video Amplifiers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
