A good PCB layout for the TPA6120A2DWPR involves keeping the audio signal traces short and away from the power supply traces, using a solid ground plane, and placing the device close to the power supply decoupling capacitors. Additionally, using a shielded enclosure and minimizing the length of the input and output cables can help reduce EMI.
The gain setting for the TPA6120A2DWPR depends on the specific application and the desired output power. A good starting point is to set the gain to 20 dB (Rg = 2 kΩ) and adjust from there based on the output power requirements. It's also important to consider the input impedance and output impedance of the device when setting the gain.
The TPA6120A2DWPR requires a well-regulated power supply with minimal ripple and noise. A recommended decoupling scheme includes a 10 μF ceramic capacitor in parallel with a 1 μF ceramic capacitor, both connected as close as possible to the device's power pins.
To protect the TPA6120A2DWPR from overheating, ensure good airflow around the device, use a heat sink if necessary, and avoid operating the device at maximum power for extended periods. Additionally, monitor the device's temperature and shut down the device if it exceeds the maximum operating temperature (150°C).
The recommended input and output coupling capacitor value for the TPA6120A2DWPR is 1 μF to 10 μF, depending on the specific application and frequency response requirements. A larger capacitor value can provide better low-frequency response, but may also increase the risk of oscillation.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPA6120A2DWPR Overview

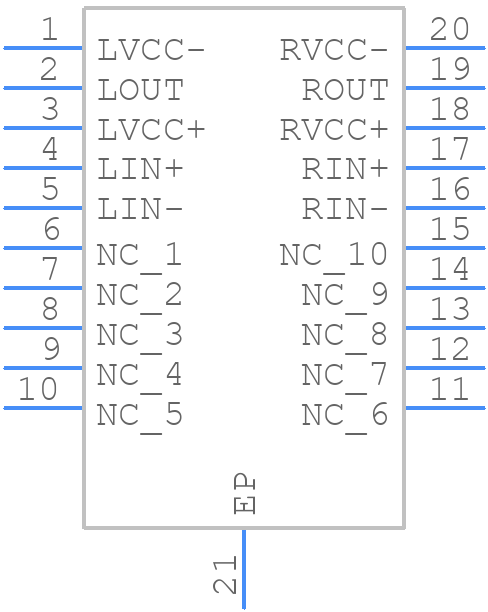

Use the download button to access the TPA6120A2DWPR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPA61,
or try a keyword search, such as Audio/Video Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
