TPA6120A2RGYT - Texas Instruments

Description: High Fidelity Stereo Headphone Amplifier

Download TPA6120A2RGYT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

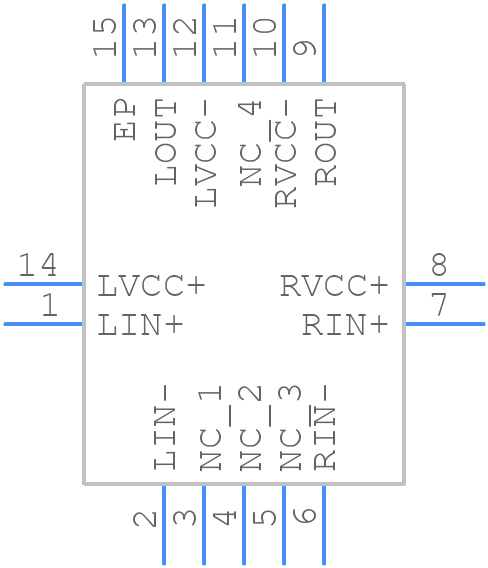

TPA6120A2RGYT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPA6120A2RGYT - Texas Instruments PCB footprint - Other - Other - RGY-(S-PVQFN-N14)
click to zoom
3D Models
TPA6120A2RGYT - Texas Instruments - 3D model - Other - RGY-(S-PVQFN-N14)
click to zoom

TPA6120A2RGYT Details

  • Manufacturer Part Number:

    TPA6120A2RGYT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    IT ALSO HAS 10V TO 30V SINGLE SUPPLY

  • Consumer IC Type:

    AUDIO AMPLIFIER

  • Gain:

    36 dB

  • JESD-30 Code:

    S-PQCC-N14
