TPA6130A2RTJRG4 - Texas Instruments

Description: Audio Amp Headphone/Speaker 1-CH Mono/2-CH Stereo 0.29W Class-AB 20-Pin WQFN EP T/R

Download TPA6130A2RTJRG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

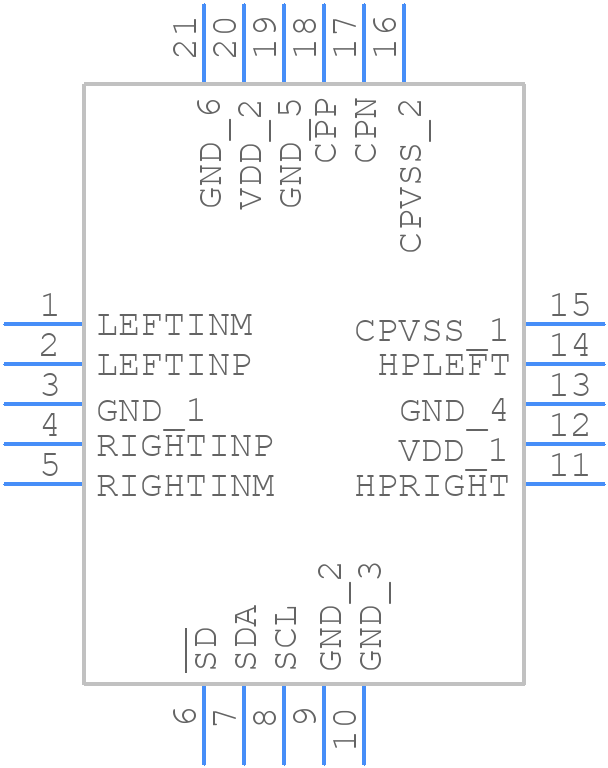

TPA6130A2RTJRG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPA6130A2RTJRG4 - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RTJ0020D
click to zoom
3D Models
TPA6130A2RTJRG4 - Texas Instruments - 3D model - Quad Flat No-Lead - RTJ0020D
click to zoom

TPA6130A2RTJRG4 Details

  • Manufacturer Part Number:

    TPA6130A2RTJRG4

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    20

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Consumer IC Type:

    VOLUME CONTROL CIRCUIT

  • Harmonic Distortion:

    1%

  • JESD-30 Code:

    S-PQCC-N20

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    0.138 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    6 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

TPA6130A2RTJRG4 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, which includes guidelines for component placement, trace routing, and thermal management. It's essential to follow these guidelines to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The gain setting depends on the input signal level and the desired output power. The TPA6130A2RTJRG4 has a gain range of 6 dB to 26 dB. You can use the gain calculation formula provided in the datasheet to determine the correct gain setting for your application.
  • The maximum power dissipation of the TPA6130A2RTJRG4 is dependent on the ambient temperature and the thermal resistance of the PCB. According to the datasheet, the maximum power dissipation is 2.5 W at 25°C ambient temperature. However, it's essential to perform thermal calculations and consider the thermal management of the system to ensure reliable operation.
  • The TPA6130A2RTJRG4 has built-in EMI filtering, but additional filtering may be necessary depending on the application. You can use external filters, such as RC filters or ferrite beads, to filter out noise and EMI. It's also essential to follow proper PCB layout and grounding techniques to minimize noise and EMI.
  • The recommended input and output coupling capacitor value depends on the application and the frequency response required. A general guideline is to use a capacitor value between 1 μF to 10 μF. However, it's essential to consider the impedance of the input and output stages and the desired frequency response when selecting the coupling capacitor value.
