TPA6132A2RTER - Texas Instruments

Description: Audio Power OpAmps WQFN-16 RoHS

Download TPA6132A2RTER Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

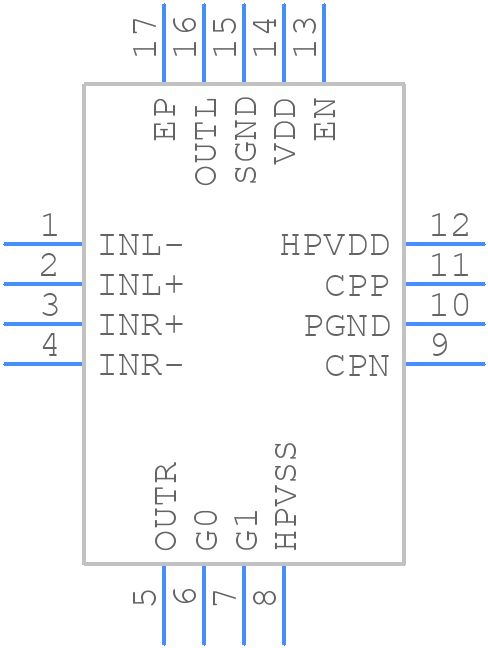

TPA6132A2RTER - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPA6132A2RTER - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RTE(S-PWQFN-N16)_2020
click to zoom
3D Models
TPA6132A2RTER - Texas Instruments - 3D model - Quad Flat No-Lead - RTE(S-PWQFN-N16)_2020
click to zoom

TPA6132A2RTER Details

  • Manufacturer Part Number:

    TPA6132A2RTER

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Bandwidth-Nom:

    20 kHz

  • Consumer IC Type:

    AUDIO AMPLIFIER

  • Gain:

    6 dB

  • Harmonic Distortion:

    1%

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    0.025 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    3.2 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TPA6132A2RTER Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPA6132A2RTER involves keeping the input and output traces short and away from each other, using a ground plane, and placing decoupling capacitors close to the device. TI provides a recommended layout in the datasheet and application notes.
  • The gain setting depends on the input signal level and the desired output power. The TPA6132A2RTER has a gain range of 10 dB to 30 dB. A higher gain setting can lead to higher output power, but may also increase noise and distortion. Consult the datasheet and application notes for guidance on selecting the optimal gain setting.
  • The maximum power dissipation of the TPA6132A2RTER is dependent on the ambient temperature and the thermal resistance of the PCB. According to the datasheet, the maximum power dissipation is 2.5 W at 25°C ambient temperature. However, this value can be derated at higher temperatures.
  • To protect the TPA6132A2RTER from overvoltage and ESD, use voltage regulators and TVS diodes on the power supply lines, and consider adding ESD protection devices on the input and output lines. Follow proper PCB design and layout practices to minimize the risk of ESD damage.
  • The recommended power supply decoupling for the TPA6132A2RTER involves using a 10 μF ceramic capacitor and a 1 μF ceramic capacitor in parallel, placed close to the device. This helps to filter out noise and ripple on the power supply lines.
