Texas Instruments provides a recommended PCB layout in the TPA6133A2RTJT evaluation module documentation, which includes guidelines for component placement, routing, and thermal management to minimize noise and ensure optimal performance.
The gain setting depends on the input signal level and the desired output power. The TPA6133A2RTJT has a fixed gain of 20dB, but you can adjust the gain by adding external resistors. Use the gain calculation formula provided in the datasheet to determine the correct gain setting for your application.
The maximum power dissipation of the TPA6133A2RTJT is dependent on the ambient temperature and the thermal resistance of the PCB. According to the datasheet, the maximum power dissipation is 2.5W at 25°C ambient temperature. However, you should perform thermal calculations to ensure the device operates within safe limits in your specific application.
The TPA6133A2RTJT has built-in overvoltage protection (OVP) and undervoltage protection (UVP) circuits. However, you should still consider adding external protection components, such as voltage regulators and TVS diodes, to ensure the device operates within the recommended voltage range and to protect against voltage transients.
The recommended input coupling capacitor value is dependent on the input signal frequency and amplitude. A general guideline is to use a capacitor with a value between 1uF to 10uF, and a type that is suitable for audio applications, such as a film capacitor or a ceramic capacitor with a high dielectric constant.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPA6133A2RTJT Overview

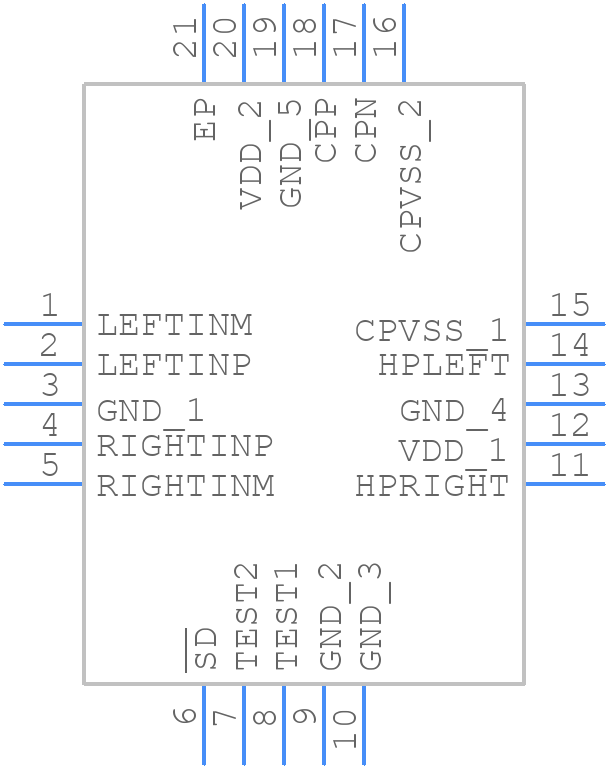

Use the download button to access the TPA6133A2RTJT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPA61,
or try a keyword search, such as Audio/Video Amplifiers
