Texas Instruments provides a recommended PCB layout in the TPA6135A2RTET evaluation module documentation, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The input capacitor values depend on the input signal frequency, amplitude, and source impedance. A general rule of thumb is to choose capacitors with a value between 1uF to 10uF, with a voltage rating that exceeds the maximum input voltage. TI also provides a capacitor selection guide in the datasheet.
The maximum power dissipation of the TPA6135A2RTET is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 2.5W at 25°C ambient temperature, but this can be derated to 1.5W at 85°C ambient temperature.
To ensure stability, follow the recommended component values and PCB layout guidelines in the datasheet. Additionally, make sure to decouple the power supply lines with capacitors, and use a low-ESR capacitor for the output filter. TI also provides a stability analysis tool to help designers verify the stability of their design.
The recommended output filter configuration is a 2nd-order low-pass filter with a cutoff frequency between 100kHz to 500kHz, depending on the application requirements. The filter components should be chosen to provide a damping ratio of 0.5 to 1.5 to ensure stability and minimize ringing.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
TPA6135A2RTET Overview

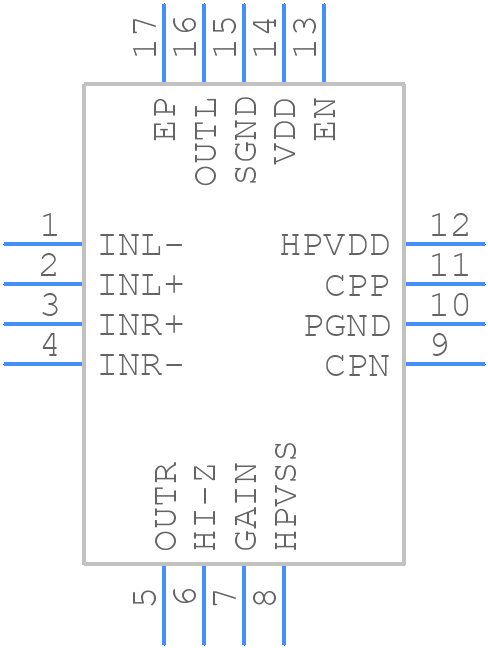

Use the download button to access the TPA6135A2RTET schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPA61,
or try a keyword search, such as Audio/Video Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
