Texas Instruments provides a recommended PCB layout in the TPA6139A2RGTT evaluation module documentation, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The gain setting of the TPA6139A2RGTT depends on the input signal level and the desired output power. Texas Instruments provides a gain setting calculator tool to help engineers select the optimal gain setting for their specific application. Additionally, the datasheet provides a gain setting table that can be used as a reference.
The maximum power dissipation of the TPA6139A2RGTT is dependent on the ambient temperature and the thermal resistance of the PCB. Texas Instruments provides a thermal design guide that helps engineers calculate the maximum power dissipation and provides guidelines for thermal management, such as using thermal vias and heat sinks, to ensure the device doesn't overheat.
The TPA6139A2RGTT has built-in EMI filters, but additional filtering may be required depending on the specific application. Texas Instruments recommends using a combination of passive and active filtering techniques, such as using ferrite beads, capacitors, and resistors, to filter out noise and EMI. The datasheet provides guidelines for EMI filtering and noise reduction.
The recommended input and output coupling capacitor value for the TPA6139A2RGTT depends on the specific application and the frequency response required. Texas Instruments recommends using a minimum of 1uF for the input coupling capacitor and 2.2uF for the output coupling capacitor, but the optimal value may vary depending on the specific design requirements.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPA6139A2RGTT Overview

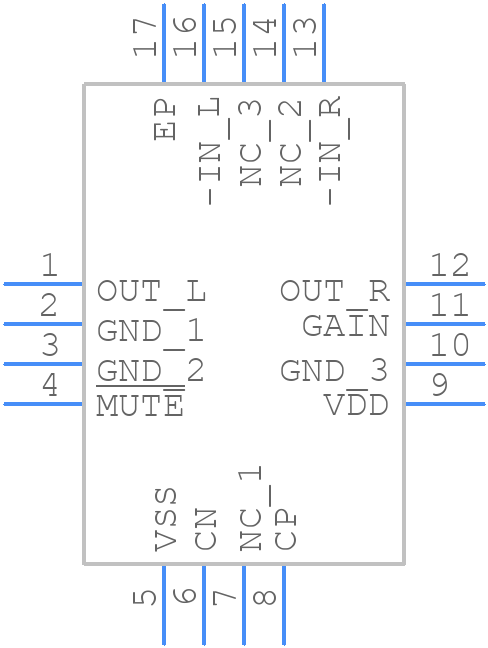

Use the download button to access the TPA6139A2RGTT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPA61,
or try a keyword search, such as Audio/Video Amplifiers
