Texas Instruments provides a recommended PCB layout for the TPA6166A2YFFR in the 'Layout' section of the datasheet. However, for optimal thermal performance, it is recommended to use a 4-layer PCB with a solid ground plane, and to place thermal vias under the device to dissipate heat efficiently.
The input capacitor values depend on the input voltage, output voltage, and output current requirements. A general rule of thumb is to use a capacitor with a value of 10-22uF for most applications. However, it is recommended to consult the 'Input Capacitor Selection' section of the datasheet and perform simulations to determine the optimal capacitor value for your specific application.
The maximum output current that can be safely drawn from the TPA6166A2YFFR is 2A. However, this value can be limited by the thermal performance of the device and the PCB layout. It is recommended to consult the 'Thermal Information' section of the datasheet and perform thermal simulations to determine the maximum output current that can be safely drawn from the device in your specific application.
To ensure EMC in your design, it is recommended to follow the guidelines outlined in the 'Electromagnetic Compatibility' section of the datasheet. This includes using a shielded inductor, placing the device away from sensitive circuits, and using a common-mode choke to filter out electromagnetic interference (EMI). Additionally, it is recommended to perform EMC testing to ensure compliance with relevant standards.
The recommended operating temperature range for the TPA6166A2YFFR is -40°C to 85°C. However, the device can operate up to 125°C with derating. It is recommended to consult the 'Recommended Operating Conditions' section of the datasheet for more information.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPA6166A2YFFR Overview

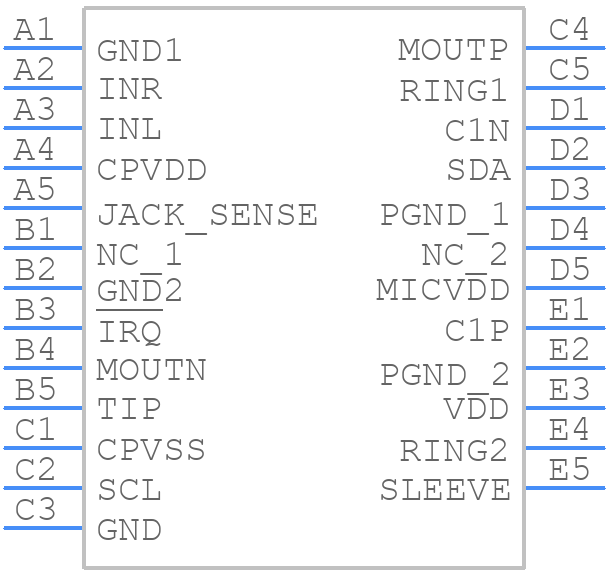

Use the download button to access the TPA6166A2YFFR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPA61,
or try a keyword search, such as Other Consumer ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
