TPA6204A1DRBR - Texas Instruments

Description: 1.7-W Mono, Fully Differential, Class-AB Audio Amplifier

Download TPA6204A1DRBR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

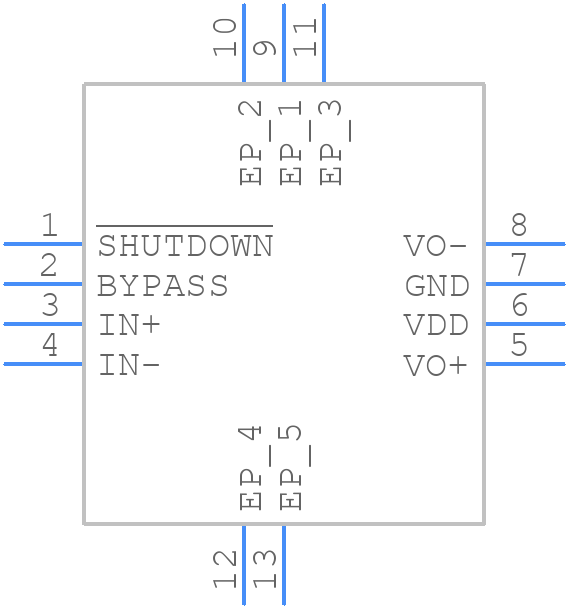

TPA6204A1DRBR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPA6204A1DRBR - Texas Instruments PCB footprint - Other - Other - TPA6204A1DRBR-4
click to zoom
3D Models
TPA6204A1DRBR - Texas Instruments - 3D model - Other - TPA6204A1DRBR-4
click to zoom

TPA6204A1DRBR Details

  • Manufacturer Part Number:

    TPA6204A1DRBR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SON

  • Pin Count:

    8

  • Country Of Origin:

    Malaysia, Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Bandwidth-Nom:

    20 kHz

  • Consumer IC Type:

    AUDIO AMPLIFIER

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Noise Figure-Nom:

    105 dB

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    1.7 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.12,25

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    6 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TPA6204A1DRBR Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPA6204A1DRBR involves keeping the input and output traces short and away from each other, using a ground plane, and placing decoupling capacitors close to the device. TI provides a recommended layout in the datasheet and application notes.
  • The gain setting depends on the input signal level and the desired output power. The TPA6204A1DRBR has a fixed gain of 20 dB, but you can adjust the gain using external resistors. Use the gain calculation formula in the datasheet to determine the correct resistor values for your application.
  • The maximum power dissipation of the TPA6204A1DRBR is dependent on the ambient temperature and the thermal resistance of the PCB. According to the datasheet, the maximum power dissipation is 2.5 W at 25°C ambient temperature. However, this value can be derated based on the actual operating conditions.
  • To protect the TPA6204A1DRBR from overheating, ensure good thermal conduction by using a heat sink or a thermally conductive PCB material. Also, keep the device away from other heat sources, and use thermal monitoring and shutdown circuits if necessary.
  • The recommended power supply decoupling for the TPA6204A1DRBR involves using a 10 μF ceramic capacitor and a 1 μF ceramic capacitor in parallel, placed close to the device's power pins. This helps to filter out noise and ensure stable operation.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPA6204A1DRBR Overview

Use the download button to access the TPA6204A1DRBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPA62, or try a keyword search, such as Audio/Video Amplifiers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
