According to TI's application notes, a 10uF ceramic capacitor in parallel with a 100nF ceramic capacitor is recommended for power supply decoupling to ensure stable operation and minimize noise.
TI recommends following a star-grounding approach, keeping the power supply traces away from the audio signal traces, and using a solid ground plane to minimize EMI and noise. Additionally, placing the input and output capacitors close to the device can help reduce noise.
The maximum power dissipation of the TPA701D is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 2.5W at 25°C. To calculate the power dissipation, use the formula: Pd = (Vcc x Icc) + (Vout x Iout), where Vcc is the supply voltage, Icc is the quiescent current, Vout is the output voltage, and Iout is the output current.
Yes, the TPA701D can be used in a bridged configuration to increase the output power. To do this, connect the outputs of two devices in anti-phase, and use an external resistor to set the gain. TI provides a detailed application note on bridged amplifier configurations, including schematics and design considerations.
The recommended input impedance for the TPA701D is 20kΩ to 50kΩ. The input impedance affects the gain of the amplifier, with a higher input impedance resulting in a higher gain. TI provides a gain vs. input impedance graph in the datasheet to help with design calculations.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPA701D Overview

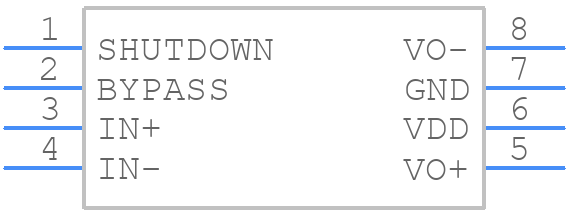

Use the download button to access the TPA701D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPA70,
or try a keyword search, such as Audio/Video Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
