TPA711D - Texas Instruments

Description: Texas Instruments TPA711D Headphone Audio Amplifier, Class-AB Mono/Stereo 1.4MHz, 8-Pin SOIC

Download TPA711D Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

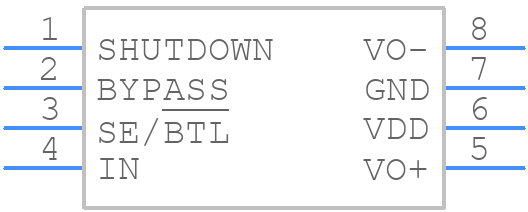

TPA711D - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPA711D - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - TPA711D
click to zoom
3D Models
TPA711D - Texas Instruments - 3D model - Small Outline Packages - TPA711D
click to zoom

TPA711D Details

  • Manufacturer Part Number:

    TPA711D

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Bandwidth-Nom:

    4 kHz

  • Consumer IC Type:

    AUDIO AMPLIFIER

  • Harmonic Distortion:

    0.3%

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    0.7 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    1.25 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

TPA711D Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the TPA711D datasheet, which includes guidelines for component placement, trace routing, and thermal management. It's essential to follow these guidelines to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The gain setting of the TPA711D depends on the specific requirements of your application. The datasheet provides a gain selection table that helps you choose the correct gain setting based on the input signal level and desired output power. You can also use the TPA711D's gain adjustment pins to fine-tune the gain setting.
  • The maximum power dissipation of the TPA711D depends on the ambient temperature and the thermal resistance of the PCB. The datasheet provides a power dissipation calculation formula and a thermal resistance table to help you determine the maximum power dissipation for your specific application.
  • The TPA711D has built-in overvoltage protection (OVP) and undervoltage protection (UVP) circuits. However, it's still recommended to add external protection components, such as voltage regulators and TVS diodes, to ensure that the device operates within its recommended voltage range.
  • The recommended input coupling capacitor value for the TPA711D depends on the input signal frequency and impedance. A general rule of thumb is to use a capacitor value between 1 μF and 10 μF, with a voltage rating that matches the input signal amplitude.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPA711D Overview

Use the download button to access the TPA711D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPA71, or try a keyword search, such as Audio/Video Amplifiers
