A good PCB layout is crucial for the TPA741DGNRG4. TI recommends a 4-layer PCB with a solid ground plane, and to keep the input and output traces short and symmetrical. Additionally, decoupling capacitors should be placed close to the IC, and the power supply traces should be wide and short.
The gain setting depends on the input signal level and the desired output power. The TPA741DGNRG4 has a gain range of 6 dB to 26 dB. A higher gain setting can lead to higher output power, but may also increase noise and distortion. It's recommended to start with a lower gain setting and adjust as needed to achieve the desired performance.
The maximum power dissipation of the TPA741DGNRG4 is 2.5 W. However, this value can be affected by the ambient temperature, PCB layout, and thermal management. It's essential to ensure proper heat sinking and thermal design to prevent overheating and damage to the IC.
Yes, the TPA741DGNRG4 can be used in a bridged configuration to increase the output power. However, this requires careful design and layout considerations to ensure proper phase matching and to prevent oscillations. TI provides application notes and design guides to help with bridged amplifier designs.
The TPA741DGNRG4 has built-in overvoltage protection (OVP) and overcurrent protection (OCP) circuits. However, additional protection measures can be implemented, such as using voltage regulators, current limiters, and fuses to prevent damage from voltage surges, overcurrent, and short circuits.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPA741DGNRG4 Overview

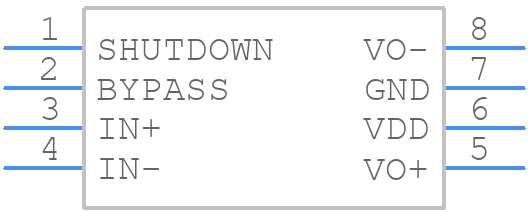

Use the download button to access the TPA741DGNRG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPA74,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
