A good PCB layout for the TPD12S521DBTRG4 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing the device close to the signal source. Additionally, using a common mode choke or a ferrite bead can help reduce EMI.
To ensure proper biasing, connect the VCC pin to a stable 3.3V or 5V power supply, and the GND pin to a solid ground plane. The device also requires a 0.1uF decoupling capacitor between VCC and GND, placed close to the device.
The TPD12S521DBTRG4 can support data rates up to 5.4 Gbps, making it suitable for high-speed applications such as HDMI, DisplayPort, and USB 3.0.
The TPD12S521DBTRG4 has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that the device is handled in a static-safe environment.
Yes, the TPD12S521DBTRG4 is designed for differential signaling applications, and can be used to transmit differential signals such as HDMI, DisplayPort, and USB 3.0.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPD12S521DBTRG4 Overview

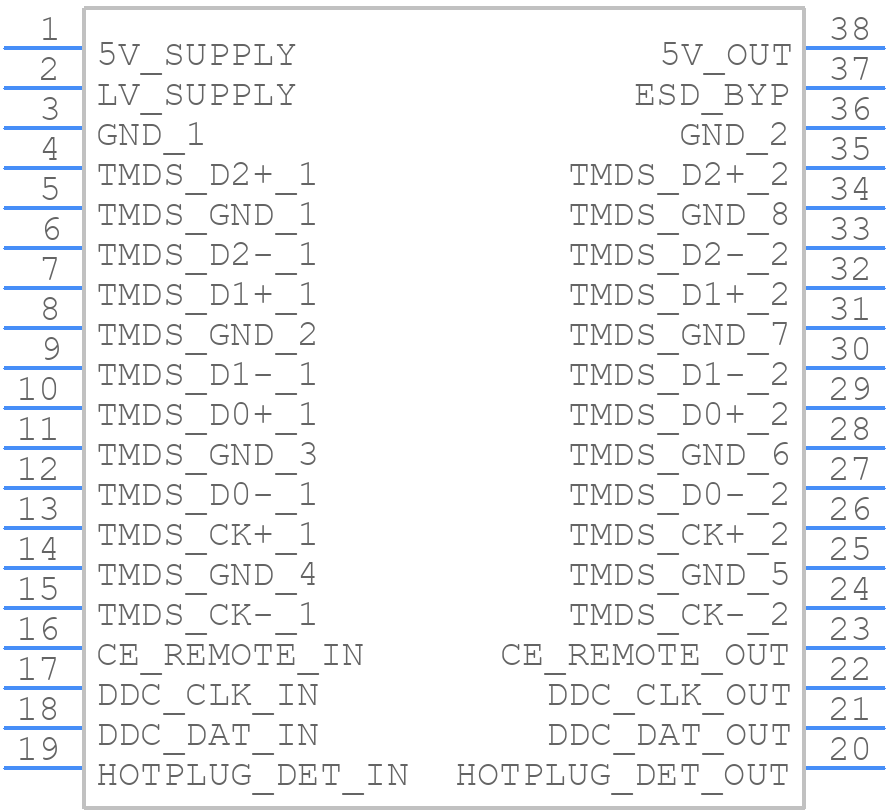

Use the download button to access the TPD12S521DBTRG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPD12,
or try a keyword search, such as Other Consumer ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
