Texas Instruments provides a recommended PCB layout in the application note SLVAE04, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
It is recommended to use a low-ESR capacitor (e.g., 0.1 μF) between VCC and GND, and to place it as close as possible to the device. Additionally, a 1 μF to 10 μF bulk capacitor can be used in parallel to further reduce noise and ripple.
The maximum cable length supported by the TPD1S514-2YZR depends on the specific application and the type of cable used. However, as a general guideline, Texas Instruments recommends keeping the cable length below 3 meters to ensure reliable operation and minimize signal degradation.
The TPD1S514-2YZR is rated for operation up to 125°C, but it's essential to ensure proper thermal management and heat dissipation to prevent overheating. Texas Instruments provides thermal design guidelines in the datasheet and application notes to help with this.
Texas Instruments provides a troubleshooting guide in the application note SLVAE05, which covers common issues and their solutions, such as signal integrity problems, power supply issues, and thermal-related problems.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPD1S514-2YZR Overview

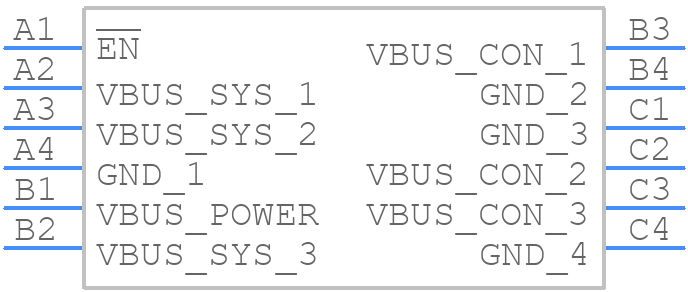

Use the download button to access the TPD1S514-2YZR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPD1S,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
