A good PCB layout for the TPD2017FN involves keeping the input and output traces separate, using a solid ground plane, and minimizing the length of the traces to reduce electromagnetic interference (EMI).
To ensure reliability in high-temperature applications, it's essential to follow the recommended operating temperature range, provide adequate heat dissipation, and consider using a heat sink or thermal interface material if necessary.
The TPD2017FN has built-in ESD protection, but it's still important to follow proper handling and storage procedures to prevent damage. Additionally, consider adding external ESD protection devices if the application requires it.
Yes, the TPD2017FN is suitable for high-frequency applications up to 100 MHz. However, it's essential to consider the device's frequency response, impedance matching, and signal integrity to ensure optimal performance.
To troubleshoot issues with the TPD2017FN, start by verifying the device's pin connections, checking for any signs of physical damage, and reviewing the application circuit design. Use oscilloscopes or logic analyzers to debug the signal waveforms and identify the root cause of the issue.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPD2017FN,L1F(S Overview

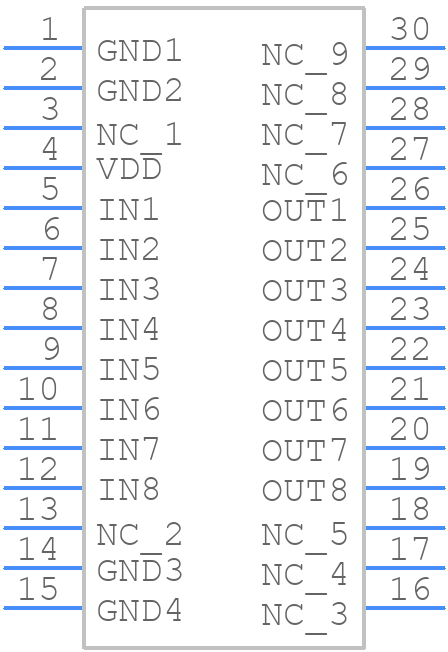

Use the download button to access the TPD2017FN,L1F(S schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPD20,
or try a keyword search, such as Power Management Circuits
